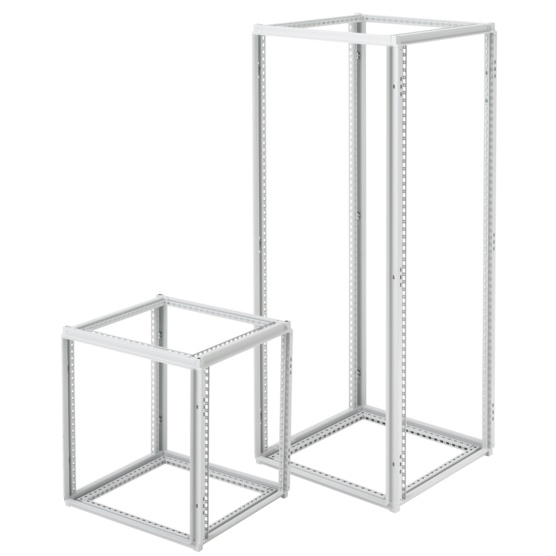

Hoffman PF1466HF | EMC Frames, 1400x600x600
Regular price
$2,991.67
Unit price
Brand: Hoffman
|
SKU:
653493
Regular price
$2,991.67
Unit price
Description
Description
The ProLine frame is the foundational design element that protects the components inside this modular enclosure. The frame was designed to maintain a solid square structure - a solid foundation for the electrical enclosure. EMC frames are plated to provide corrosion resistance while also maintaining metal-to-metal contact with the EMC covers.
Main Features
- 12 gauge (2.5mm), roll-formed steel frame with welded steel corners
- Open roll-formed profile design affords complete surface corrosion protection and assembly access
- Plated finish for corrosion resistance and effective cover grounding
- Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
- Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
- Integral frame channels support the full weight of the mounting subpanel (sold separately)
- Individual frames designed for joining/baying in multiple directions with the inclusion of joining kits
- Provisions for mounting subpanel, rack mounting and grid/rail system mounting to support many unique customer applications
- Appropriate metal-impregnated gasket door(s) and covers are required to maintain environmental rating while electrically bonded to frame, sold separately
Specifications
Specifications
Specifications
| Material | Mild Steel |
|---|---|
| Nominal Frame Size | 1400 x 600 x 600 mm |
| Max Subpanel Size | 1285 x 530 mm / 50.59 x 20.87 in |
| Max Rack Mounting Space | 28U |
| Color | Unpainted |
| Finish | Plated |
| Thickness | 12 ga / 2.66 mm |
| Weight | 93.5 lb |
| BULLETIN NUMBER | P20EM |
