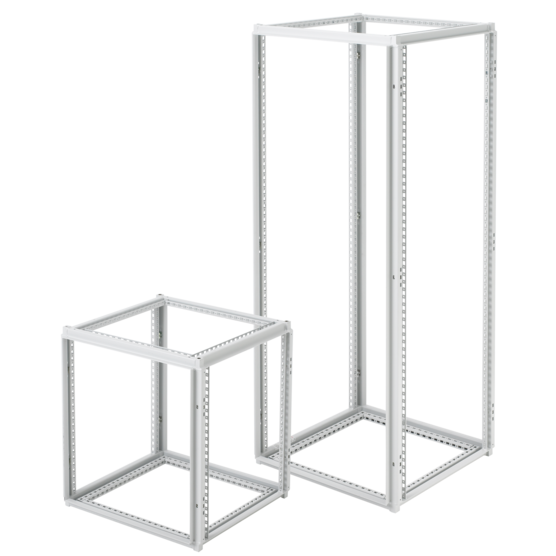

Hoffman PF1688 | Single-Bay Frames, 1600x800x800
Regular price
$1,729.76
Unit price
Brand: Hoffman
|
SKU:
653507
Regular price
$1,729.76
Unit price
Description
Description
The ProLine frame is the foundational design element that protects the components inside this modular enclosure. The frame was designed to maintain a solid square structure - a solid foundation for the electrical enclosure.
Main Features
- 12 gauge (2.5mm), roll-formed steel frame with welded steel corners
- Open roll-formed profile design affords complete surface corrosion protection and assembly access
- RAL 7035 textured light-gray polyester powder paint finish
- Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
- Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
- Integral frame channels support the full weight of the mounting subpanel (sold separately)
- Individual frames designed for joining/baying in multiple directions with the inclusion of joining kits
- Provisions for mounting subpanel, rack mounting and grid/rail system mounting to support many unique customer applications
- Appropriate gasketed door(s) and covers are required to maintain a Type-12 environmental rating, sold separately
Specifications
Specifications
Related Accessories
- Catalog #: ADP2
- Catalog #: PB088
- Catalog #: PB088SS
- Catalog #: PB188
- Catalog #: PCS168
- Catalog #: PDS168
- Catalog #: PDWG168
- Catalog #: PGP88
Specifications
| Material | Mild Steel |
|---|---|
| Max Subpanel Size | 1485 x 730 mm / 58.46 x 28.74 in |
| Max Rack Mounting Space | 33U |
| Nominal Frame Size | 1600 x 800 x 800 mm |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Powder Coated |
| Thickness | 12 ga / 2.66 mm |
| Weight | 96 lb |
| BULLETIN NUMBER | P20 |
