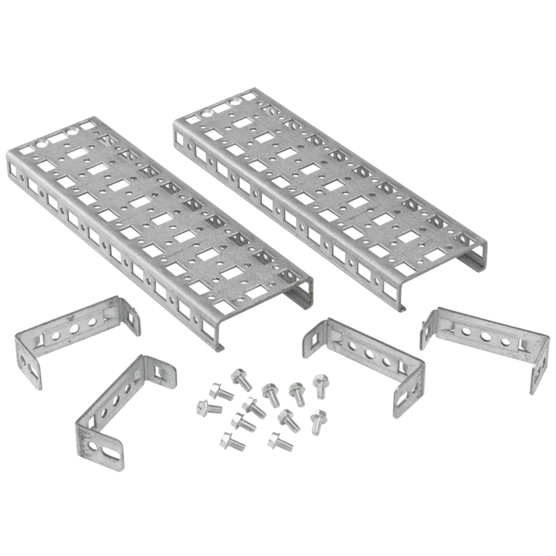

Hoffman PGH1S5 | Grid Straps, 1-Row, 500mm, Steel
Regular price
$174.19
Unit price
Brand: Hoffman
|
SKU:
653662
Regular price
$174.19
Unit price
Description
Description
The Grid Straps are provided with specially designed rectangular holes to allow the use of cage nuts or front-loading cage nuts. Mounting holes are provided on 25-mm centers. Grid Straps are available with either 1 row or 3 rows of holes and are furnished in pairs. Mounting hardware to attach Grid Straps to the frame or to other Grid Straps is included.
Main Features
- Can be mounted vertically between horizontally mounted Grid Straps
- Can be mounted left-to-right horizontally between front-to-back pairs or from the sides of the ProLine frame
- Can be mounted front-to-back horizontally across the bottom or sides of the ProLine frame
- When mounting width-wise from vertical to vertical, the grid strap chosen must be 100mm greater than the nominal size (i.e. 800mm wide enclosure would take a 900mm grid strap in this orientation)
- Furnished in pairs, and constructed from 14 gauge (1.75mm) conductive steel
Specifications
Specifications
Specifications
| Material | Mild Steel |
|---|---|
| Fits Frame Depth | 500 mm |
| Hole Pattern | One Row |
| Color | Unpainted |
| Finish | Galvanized |
| Thickness | 14 ga / 1.9 mm |
| Weight | 2.1 lb |
| BULLETIN NUMBER | P20 |
