Brand: Hoffman
|
SKU:
653689
Hoffman PGLD12165DC | ProLine Gold Series 2-Bay Desk Console Type 12, 1175x1555x469mm, Lt Gray, Steel
Regular price
$5,619.10
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman PGLD12165DC | ProLine Gold Series 2-Bay Desk Console Type 1...
Regular price
$5,619.10
Unit price
Description
Description

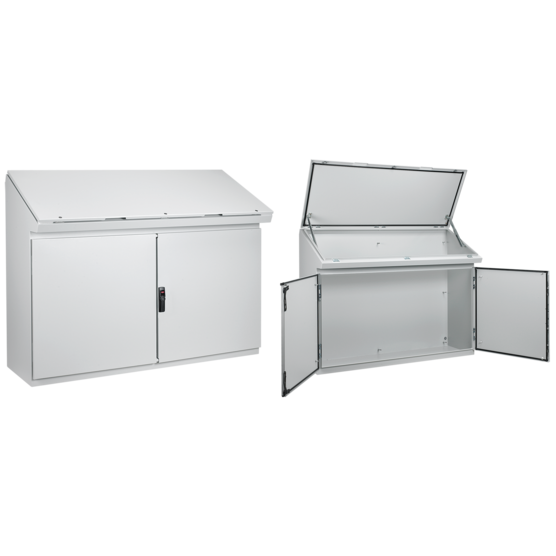

The ProLine Gold Series Double-Bay Desk Console provides an ideal surface for mounting HMI controls such as keyboards, switches, lights or dials, and it is ergonomically designed so operators can sit or stand while working. With front and rear doors for easy access, the console provides a large space for mounting internal components and controls and can be configured in an arc by using the wedge accessory.
Main Features
- 25-degree sloped top
- Seams continuously welded and ground smooth
- Top door prop allows for single-handed operation
- Built-in top door handle
- Quarter-turn latches hold top door securely closed
- ProLine latching system and key locking swing handles on front doors and on rear doors of dual-access enclosures
- Internal rails on dual-access enclosures facilitate mounting of ProLine internal components
- Full access provides maximum mounting space and easy access to interior components
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 12; File Number E61997
- cUL Listed per CSA C22.2 No 94; File No. E61997
- NEMA/EEMAC Type 12
- IEC 60529, IP 55
Specifications
| Height | 46.27 in / 1175 mm |
|---|---|
| Width | 61.21 in / 1555 mm |
| Depth | 18.47 in / 469 mm |
| Protection Rating | NEMA Type 12; IP66 |
| Material | Mild Steel |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Powder Coated |
| Thickness | 14 ga / 1.9 mm |
| Weight | 286 lb |
| BULLETIN NUMBER | P11 |
