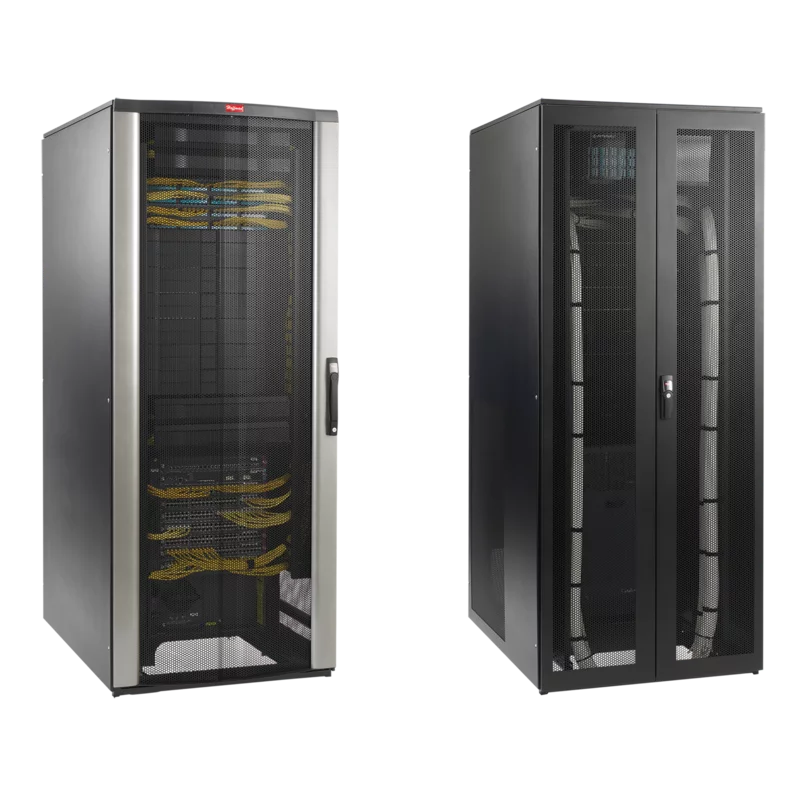

Hoffman PNS21810B | ProLine Network Switch Cabinet with Sides, 2150x800x1000mm, Black, Steel

Hoffman - PNS21810B - Features

• Meets all CISCO 6509, 6513, 7009 and 7018 Series network switch installation and operational requirements
• Integrated right-to-left airflow ducting ensures core switch is supplied with air from cold aisle
• Front door has keyed multi-point vault-style latch system and central key lock to ensure security
• Split overlapping rear doors provide quick access to equipment without blocking aisles (7009 and 7018 Series have split front and rear doors)
• Front vertical cable manager has integral hinged doors to house, protect and provide aesthetic appearance
• Front cable manager uses arrowhead support fingers to support and ensure proper bend radius, provide increased cable capacity and facilitate assembly
• Available standard with sides or without for use in ganged applications
• Top-mount sliding gland plate provides large opening for cables, pre-terminated cable bundles and patch panels
• Open base allows under floor cable entry
• 6509 and 6513 Series only:
• Network core switch shelf located at bottom of cabinet (2 RU on 65089/6513 Series; 0 RU on 7018 Series)
• Attractive, rigid front door made of aluminum extrusions and formed perforated steel, with more than 70 percent open space for free flow of cool air to equipment
• Rear upper-mounted 4 RU equipment mounting angles provide for PDUs, fiber-to-copper transition, splitter equipment and other 19-in. rack-mounted equipment
• Rear horizontal and vertical cable management provide support and transition of permanent link cables
• Switch shelf is included with cabinet
• Front set of 19-inch mounting rails are tapped (10-32) per EIA standards
• Top and sides are formed steel
• Sides secured with fasteners
• BULLETIN NUMBER: DPVD
