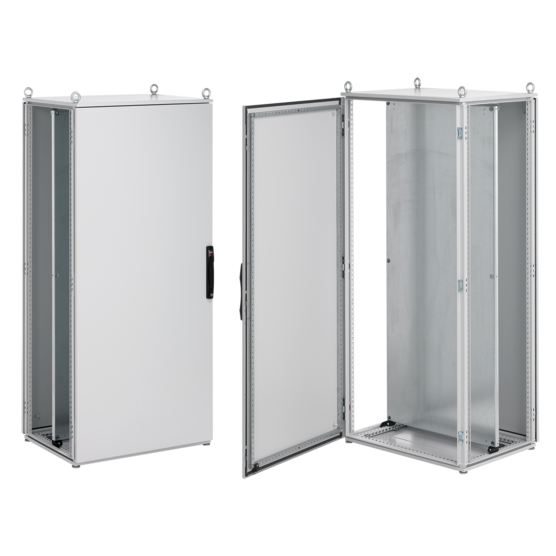

Hoffman PP2065 | ProLine Industrial Packages, Type 12, 2000x600x500
Regular price
$2,751.95
Unit price
Brand: Hoffman
|
SKU:
653872
Regular price
$2,751.95
Unit price
Description
Description
ProLine Industrial Packages are full-featured, ready-to-use enclosure solutions that make it unnecessary to order each component separately. For convenience, a single part number includes a frame, solid door(s), handle and key lock, a solid top, a solid rear cover, a full mounting subpanel, a gland plate, and four lifting eyes. Side covers are ordered separately to accommodate joining/baying applications.
Main Features
- Frames are roll-formed, robotically welded with solid steel, fully welded corners; accommodates 25 mm DIN standard
- Standard door bars increase strength and rigidity and allow for an extra mounting options
- Seamless foam-in-place gasket provides a protective seal against moisture and contaminants
- Gasket and latching system together ensure a solid seal with low closure force
- Reversible door, left hinged as a default, with 130-degree swing
- Galvanized mounting plates
- Capped ground studs on door, rear and top panel
- Integral frame channels support the full weight of the mounting plates
- Frame thickness 12 gauge/2.5 mm carbon steel powder painted in RAL 7035
- Door thickness 14 gauge/2.0 mm, carbon steel powder painted – for details please check reference tables
- Mounting panel 2.5 mm on single bay, 3.0 mm on double bay, galvanized steel
- Rear panel and solid top 1.5 mm, carbon steel powder painted; RAL 7035
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 12; File Number E61997
- NEMA/EEMAC Type 12
- CSA File Number 42186: Type 12
- VDE IP55
- IEC 60529, IP55
Related Accessories
- Catalog #: ADP2
- Catalog #: PB165
- Catalog #: PBB205
- Catalog #: PBB205EMC
- Catalog #: PCS206
- Catalog #: PCS206SS
- Catalog #: PDF206
- Catalog #: PDS206
Specifications
| Height | 78.74 in / 2000 mm |
|---|---|
| Width | 23.62 in / 600 mm |
| Depth | 19.69 in / 500 mm |
| Protection Rating | NEMA Type 12 |
| Material | Mild Steel |
| Type | Single Door |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Powder Coated |
| Weight | 239 lb |
| BULLETIN NUMBER | P21 |
