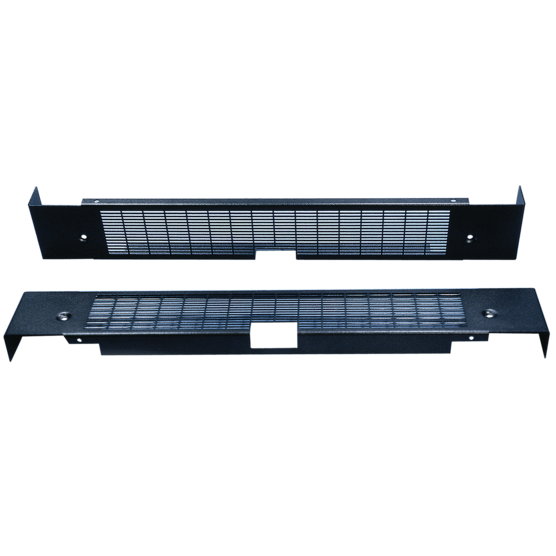

Hoffman PPBCV11200 | Vented Plinth Base Covers, fits 100x1200mm, Bl...
Description
Description
Vented Plinth Base Covers install in the front and rear openings of a standard plinth base in place of Solid Covers. Vented covers allow air to circulate into the enclosure. Vented Plinth Base Covers are available in 100-mm and 200-mm heights. These covers include all necessary mounting hardware. A standard plinth base must be ordered in combination with Vented Plinth Base covers to form a Vented Plinth Base. If using a gland plate with the Vented Plinth Base, order a vented gland plate to provide air circulation through the bottom of the enclosure.
200 mm Plinth Bases require two sets of covers.
Main Features
- Hardware included
- Standard plinth base must be ordered in combination with Vented Plinth Base covers to form a Vented Plinth Base
- If a gland plate is needed, opt for a vented gland plate for optimum air flow
Specifications
Specifications
Specifications
| Material | Mild Steel |
|---|---|
| Fits Frame Type | Double-Bay |
| Fits Frame Width | 1200 mm |
| Color | Jet Black |
| Color Code | RAL 9005 |
| Finish | Powder Coated |
| Thickness | 16 ga / 1.52 mm |
| Weight | 7.5 lb |
| BULLETIN NUMBER | P20 |
