Brand: Hoffman | SKU: 653936

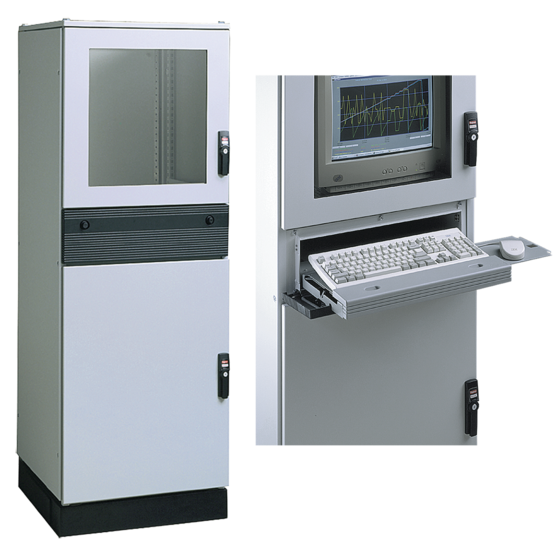

Hoffman PPC1668 | PROLINE-PC Modular Enclosure, Type 12, 1600x600x800mm, Lt Gray, Steel

Regular price $12,372.87
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

ProLine-PC Modular Enclosures are ideal for applications that require housing standard PCs and keyboards. A modular system, these enclosures provide multiple configuration possibilities—simply add components to the frame to create a single enclosure, or gang multiple enclosures for larger or more complex applications.

100-mm solid base is included in the A dimension.

Main Features

  • Frame is enclosed with solid sides, a solid top and a 100-mm solid base.
  • Three doors, two in front and one in back, provide convenient access
  • Sealed keyboard compartment maintains enclosure integrity when the compartment door is opened
  • The 19-in. diagonal top window door, hinged on the left, offers viewing access for a variety of monitor sizes and has a small flush swing handle with keylock for system security
  • The vented frame shelf in the top compartment is constructed of 14 gauge steel and is painted with RAL 7035 textured light-gray polyester powder paint
  • The ProLine keyboard compartment includes a locking feature, an angled palm rest, a cable access port for wiring and integral mouse pad holders for both left-handed and right-handed people
  • The accessory front opening accommodates a number of optional components, such as keyboard shelves and control compartments
  • The bottom compartment includes a solid door hinged on the left that has a small flush swing handle with key lock; compartment can be used to install computer equipment, panel-mounted equipment or rack mounted control systems

Specifications

Industry Standards

  • UL 508A Listed; Type 12; File Number E61997
  • cUL Listed per CSA C22.2 No 94; Type 12; File Number E61997
  • NEMA/EEMAC Type 12
  • CSA File Number 42186: Type 12
  • VDE IP55
  • IEC 60529, IP55

Specifications

Height62.99 in / 1600 mm
Width23.62 in / 600 mm
Depth31.5 in / 800 mm
Protection RatingNEMA Type 12; IP55
MaterialMild Steel; Stainless Steel
Top Door Opening Height558 mm / 21.97 in
Top Door Opening Width536 mm / 21.1 in
Bottom Door Opening Height739 mm / 29.09 in
ColorLight Gray
Color CodeRAL 7035
FinishPowder Coated
Thickness16 ga / 1.52 mm
BULLETIN NUMBERP20PC
