Hoffman PRA197TH | 19-in. Rack Angles, Sq Hole, fits 700mm, Steel
Regular price
$248.18
Unit price
Brand: Hoffman
|
SKU:
430026
Regular price
$248.18
Unit price
Description
Description

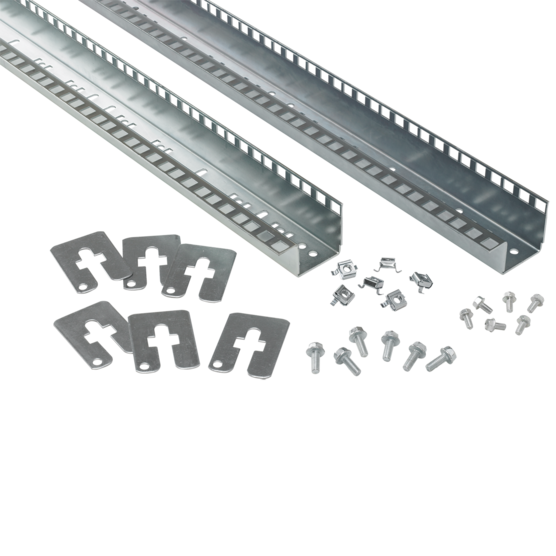

19-in. U-Shaped Rack Angles are available in square-hole and tapped-hole designs. Tapped Rack Angles have 10-32 tapped holes. Square-Hole Rack Angles are designed to accept metric or English cage nuts. 19-in. Rack Angles are fixed directly into a 600-mm wide enclosure frame. To mount 19-in. Rack Angles in 700- or 800-mm wide frames, use frame reducing brackets.
Vertical holes spaced in 1.75-in. (44.5-mm) increments.
Main Features
- Furnished in pairs
- Tapped-Hole Rack Angles are constructed from 12 gauge conductive steel, while Square-Hole Rack Angles are 14 gauge conductive steel; U-shaped, channel construction
- Tapped-Hole Rack Angles have 10-32 threaded holes; Square-Hole Rack Angles are designed to accept metric or English cage nuts. Comply with ANSI/EIA RS-310-D rack mounting standards.
- Rack Angles fit directly into 600-mm wide frames; other widths require Frame Reducing Brackets or Adjustable Rack-Mounting Rails (sold separately).
Specifications
Specifications
Specifications
| Material | Mild Steel |
|---|---|
| Rack Units | 13 |
| Hole Type | Square |
| Fits Frame | 700 mm mm |
| Color | Unpainted |
| Finish | Plated |
| Thickness | 14 ga / 1.9 mm |
| Weight | 5.5 lb |
| BULLETIN NUMBER | P20 |
