Brand: Hoffman
|
SKU:
9807346

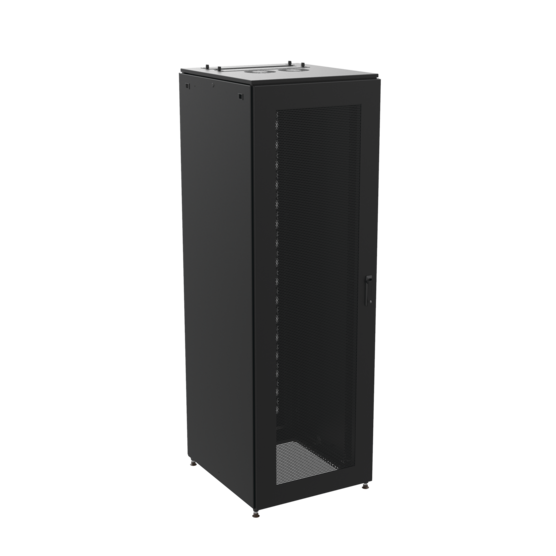

Hoffman PS1C1269B | ProLine S1 Cabinet, 1200x600x900mm, Black, Steel
Regular price
$2,406.43
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman PS1C1269B | ProLine S1 Cabinet, 1200x600x900mm, Black, Steel
Regular price
$2,406.43
Unit price
Description
Description
ProLine S1 Cabinets are an economical solution for contractors, small computer rooms, schools, retail outlets, or smaller networks that require a general purpose cabinet to house servers, switches, cables and other communication equipment. Multiple sizes, configurations, and accessories give ProLine S1 Cabinets wide application flexibility.
Main Features
- All doors have toolless hinges that allow the doors to easily be removed or reversed in the field
- All doors have ergonomic opening, keylocking handles
- Easy-to-remove side panels with optional keylocking latch provisions
- Front and rear doors are fully perforated to allow for maximum air flow
- Top accepts additional cooling fans (2 x 6-in. fans) with integral finger guard prefabricated in place
- Top has sliding gland plate to accommodate large cable egress capacity
- Combination foot and adjustable leveler in each cabinet corner
- Open base for easy cable entrance
- Rack angles are fully adjustable front to rear, easily converting between tapped or square configurations
- Rack angles able to mount off-centered on 700 and 800mm wide models
- Rack angles able to configure at 23” spacing on 700 and 800mm wide models
- Perforated doors meet or exceed manufactures open space/air flow ventilation requirements
Specifications
Specifications
Industry Standards
- UL 2416 Listed File Number E230874
- cUL Listed per CSA 22.2 60950-1-07
- UL 2416 Bonding and Grounding (with use of PGK grounding Kit)
- EIA 310-D (RU – Rack Unit spacing, marking, and positioning)
- IEC 60529, IP20
Related Accessories
- Catalog #: PS1CLKLD
- Catalog #: PS1CLKHD
- Catalog #: PC1M12
- Catalog #: NCLH
- Catalog #: PSCLO
- Catalog #: A6AXFNGQ
- Catalog #: PSCLO3
- Catalog #: A6AXFNPG
Specifications
| Height | 47.74 in / 1213 mm |
|---|---|
| Width | 23.87 in / 606 mm |
| Depth | 35.36 in / 898 mm |
| Protection Rating | NEMA Type 1; IP20 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Jet Black |
| Color Code | RAL 9005 |
| Thickness | 16 ga / 1.52 mm |
| Cabinet Type | Communication |
| Rack Spacing | 19-in. |
| Rack Units | 24 |
| BULLETIN NUMBER | DPS1 |
