Brand: Hoffman | SKU: 397853

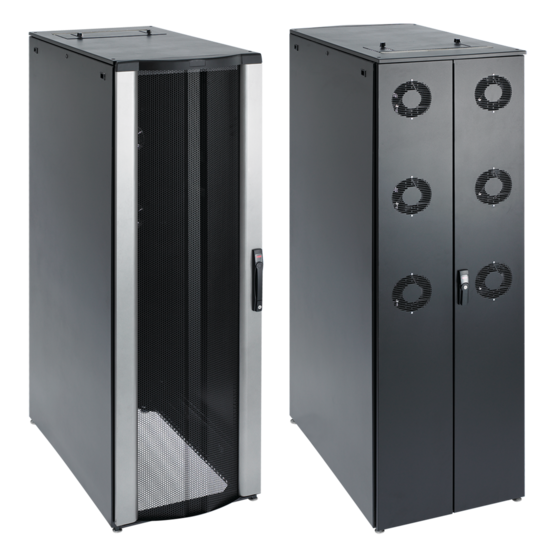

Hoffman PSCHCA20610B | ProLine FloTek HCA Server Cabinet, 2000x600x1000mm, Black, Steel, With Sides

Regular price $7,748.95
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

Two independently-powered, redundant fan banks in the rear of the ProLine FloTek HCA Server Cabinet maximize cooling power for high-density applications that generate high amounts of heat.

Fans provide up to 1440 CFM airflow

Main Features

  • Fully perforated front door offers maximum airflow from cold aisle and conforms to server manufacturer open space requirements
  • Rigid front door made of aluminum extrusions and formed perforated steel offers highly attractive appearance and durability
  • Six 6-inch fans with integral finger guards in the rear doors pull cold-aisle air through cabinet and exhaust it to hot aisle
  • Fans on each door can be independently powered to provide redundant cooling
  • Solid top helps direct airflow across equipment
  • Models without sides fit together quickly for easy installation in ganged applications
  • Three-point locking pushbutton swing handle on front door provides easy but controlled access; two keys included
  • Rear doors are split for easy access and include 3-point, low-profile, locking swing handle
  • Two sets of 19-inch square-hole rack angles support both front and rear of equipment
  • Rack angles are infinitely adjustable from front to rear for positioning flexibility
  • Large gland plate in top allows easy routing of cable, pre-terminated cables and patch panels
  • Open bottom with integral bolt-down brackets

Specifications

Industry Standards

  • UL Listed to UL 508A File Number E61997
  • cUL Listed to CSA C22.2 No. 14-18
  • EIA 310-D (RU – Rack Unit spacing, marking, and positioning)
  • IEC 60529, IP20
  • Perforated doors meet or exceed manufactures open space/air flow ventilation requirements

Specifications

Height78.37 in / 1991 mm
Width23.94 in / 608 mm
Depth39.34 in / 999 mm
MaterialMild Steel
Rack Units42
SidesWith sides
Rack AnglePRA1920THL1
ColorJet Black
Color CodeRAL 9005
FinishPowder Coated
Thickness16 ga / 1.52 mm
Weight358 lb
BULLETIN NUMBERDPSR
