Brand: Hoffman
|
SKU:
654216

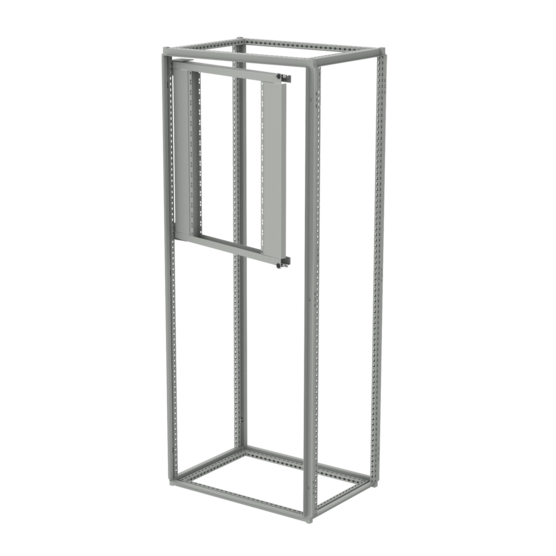

Hoffman PSF6 | Partial Swing-Out Rack Frame, fits 600mm wide, Lt Gray, Steel
Regular price
$1,460.30
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman PSF6 | Partial Swing-Out Rack Frame, fits 600mm wide, Lt Gr...
Regular price
$1,460.30
Unit price
Description
Description
This 19-in. Partial Swing-Out Rack Frame is used when a smaller, medium-duty swing-out frame is desired. Light-weight rack equipment fits nicely into this 800-mm tall swing-out frame, providing 90 degrees of rotation and increased accessibility.
Main Features
- Side hinge brackets are used to mount the swing frame, allowing free access above and below the swing frame
- Used with any height enclosure and hinged on the right or left
- Furnished with hinges, two quarter-turn latches and mounting hardware
- Complies with ANSI/EIA RS-310-D rack mounting standards:
- Swing-Out Rack Frame assemblies are supplied with mounting supports; Swing-Out Rack Frames can also be installed in right, left or both bays of 1200-mm wide frames using center uprights
- Swing-out mounting supports mount to inside of frame at any vertical location
- Mounting supports and swing-out frame can be located at a variable depth using grid straps; swing is reduced when located at a depth other than front mounted
Specifications
Specifications
Specifications
| Material | Mild Steel |
|---|---|
| Fits Frame Width | 600 mm |
| Rack Units | 16 |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Powder Coated |
| Thickness | 12 ga / 2.66 mm |
| Weight | 17.32 lb |
| BULLETIN NUMBER | P20 |
