Brand: Hoffman
|
SKU:
397855

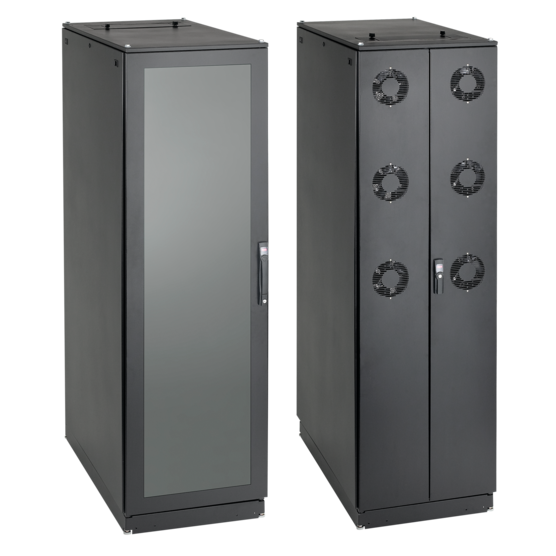

Hoffman PSFD20610B | ProLine FloTek FD Server Cabinet, 2000x600x1000mm, Black, Steel, With Sides
Regular price
$8,728.06
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman PSFD20610B | ProLine FloTek FD Server Cabinet, 2000x600x100...
Regular price
$8,728.06
Unit price
Description
Description
The ProLine FloTek FD Server Cabinet uses the cooling power of two banks of independently-powered fans in the back of the cabinet and an integral front floor duct to direct air into server intakes when positioned over a cutout in a raised data center floor. The cabinet air inlet requires alignment with a floor cutout so blocking plates can direct cool air from the floor plenum across the front of the equipment.
Main Features
- Fan bank promotes air flow through cabinet to exhaust into hot aisle
- Independently powered fans provide redundant cooling
- Top and side cover configurations prevent recirculation of hot exhaust air
- Top cover configuration allows for easy routing of network cables, pre-terminated cables and patch panels
- Side-less models allow for easy installation in ganging applications
- Three-point locking swing handle allows for easy but controlled access; two keys included
- Common profiles allow ganging of server and networking cabinets
Specifications
Specifications
Industry Standards
- UL Listed to UL 508A File Number E61997
- cUL Listed to CSA C22.2 No. 14-18
- EIA 310-D (RU – Rack Unit spacing, marking, and positioning)
- IEC 60529, IP20
- Perforated doors meet or exceed manufactures open space/air flow ventilation requirements
Specifications
| Height | 82.08 in / 2085 mm |
|---|---|
| Width | 23.58 in / 599 mm |
| Depth | 39.34 in / 999 mm |
| Material | Mild Steel |
| Rack Units | 42 |
| Sides | With sides |
| Rack Angle | PRA1920THL1 |
| Color | Jet Black |
| Color Code | RAL 9005 |
| Finish | Powder Coated |
| Thickness | 16 ga / 1.52 mm |
| Weight | 38 lb |
| BULLETIN NUMBER | DPSR |
