Brand: Hoffman
|
SKU:
654229
Hoffman PSP186 | Swing-Out Panel, 1800x600, fits 1800H (min.), White, Steel
Regular price
$1,381.63
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman PSP186 | Swing-Out Panel, 1800x600, fits 1800H (min.), Whit...
Regular price
$1,381.63
Unit price
Description
Description

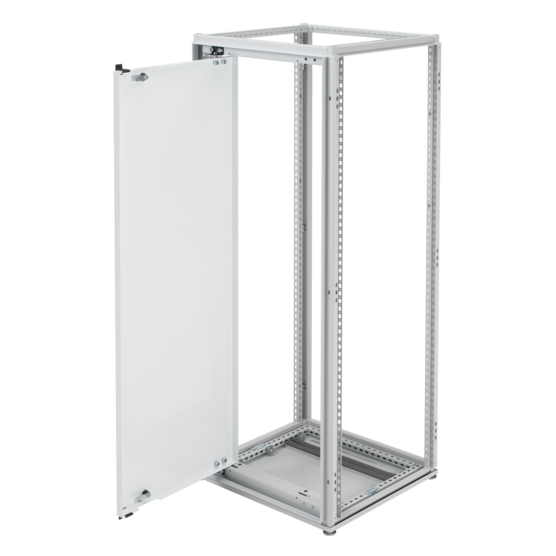

Swing-Out Panels allow a front-mounted panel to pivot out of an enclosure frame opening. This accessory includes a panel and all the necessary hardware. Panels provide 170 degrees of rotation, with the capability to hinge from the right or left side.
Main Features
- Swing-Out Panels are available for 600-, 700- and 800-mm wide enclosures
- Spring-loaded pivot post allows for easy installation
- Hinge blocks are anodized black; supports and panel have a painted white finish
- Quarter-turn latches are provided to secure the Swing-Out Panel in the closed position
- Panels provide 170 degrees of rotation, with the capability to hinge from the right or left side.
- All necessary mounting hardware included
Specifications
Specifications
Specifications
| Material | Mild Steel |
|---|---|
| Fits Frame Width | 600 mm |
| Fits Frame | 1800 or taller mm |
| Color | White |
| Finish | Powder Coated |
| Thickness | 12 ga / 2.66 mm |
| Weight | 66 lb |
| BULLETIN NUMBER | P20 |
