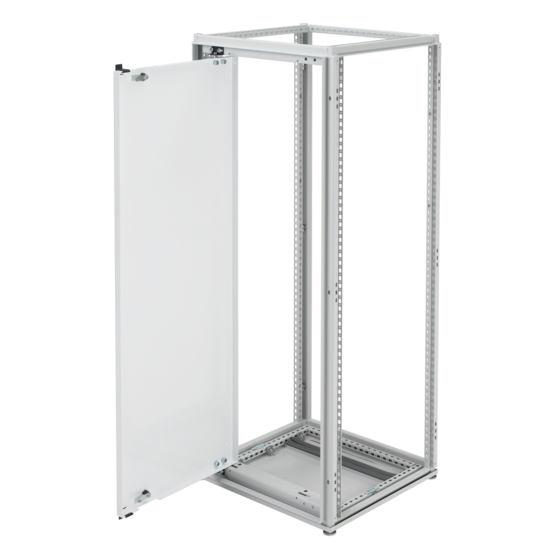

Hoffman PSP206 | Swing-Out Panel, 2000x600, fits 2000H (min.), Whit...
Regular price
$1,445.84
Unit price
Brand: Hoffman
|
SKU:
654231
Regular price
$1,445.84
Unit price
Description
Description
Swing-Out Panels allow a front-mounted panel to pivot out of an enclosure frame opening. This accessory includes a panel and all the necessary hardware. Panels provide 170 degrees of rotation, with the capability to hinge from the right or left side.
Main Features
- Swing-Out Panels are available for 600-, 700- and 800-mm wide enclosures
- Spring-loaded pivot post allows for easy installation
- Hinge blocks are anodized black; supports and panel have a painted white finish
- Quarter-turn latches are provided to secure the Swing-Out Panel in the closed position
- Panels provide 170 degrees of rotation, with the capability to hinge from the right or left side.
- All necessary mounting hardware included
Specifications
Specifications
Specifications
| Material | Mild Steel |
|---|---|
| Fits Frame Width | 600 mm |
| Fits Frame | 2000 or taller mm |
| Color | White |
| Finish | Powder Coated |
| Thickness | 12 ga / 2.66 mm |
| Weight | 65 lb |
| BULLETIN NUMBER | P20 |
