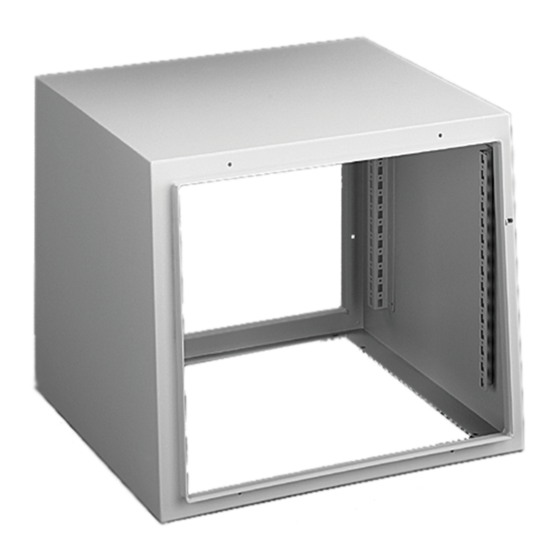

Hoffman PST566 | ProLine Sloped-Front HMI Enclosure, Type 12, 500x6...
Description
Description
A truly modular, build-your-own system, ProLine Sloped-Front HMI Enclosure foundation is extremely adaptable for nearly any application. Full-front opening for door/cover options has a 5-degree slope. Rear opening(s) for door and cover options. Optional ProLine Frame Shelf or ProLine Grid System is recommended to provide a stationary platform for supporting deep equipment. The open bottom is suitable for joining the top to a 700-mm-tall ProLine frame.
Main Features
- Enclosure is available in three heights
- The bottom of the 600x600-mm sizes can be joined through a base with cutout to a pedestal or pendant arm system
- A support bracket allows the 600x600-mm sizes to be suspended from an overhanging pendant arm system
Specifications
Specifications
Specifications
| Height | 19.69 in / 500 mm |
|---|---|
| Width | 23.62 in / 600 mm |
| Depth | 23.62 in / 600 mm |
| Protection Rating | IP55 |
| Material | Mild Steel |
| Nominal Dimensions | 500 x 600 x 600 mm |
| Front Opening | 440 x 536 mm / 17.31 x 21.11 in |
| Rear Opening | 435 x 536 mm / 17.13 x 21.11 in |
| Internal Mounting | 325 mm / 12.8 in |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Powder Coated |
| BULLETIN NUMBER | P9 |
