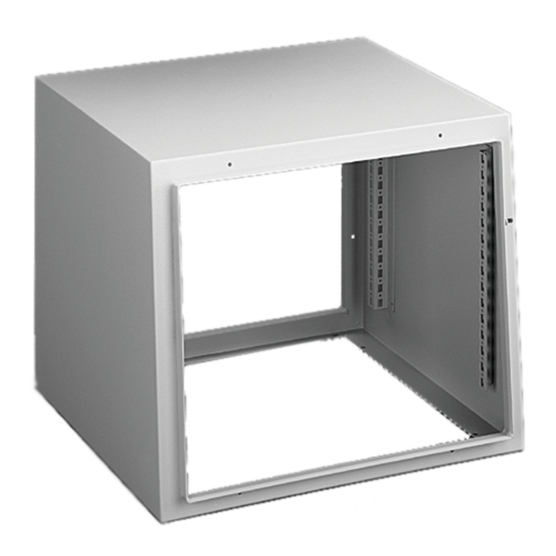

Hoffman PST766SS | Sloped Front, 700x600x600mm, SS Type 304
Regular price
$4,736.18
Unit price
Brand: Hoffman
|
SKU:
654288
Regular price
$4,736.18
Unit price
Description
Description
A truly modular, build-your-own system, ProLine Sloped-Front HMI Enclosure foundation is extremely adaptable for nearly any application. Full-front opening for door/cover options has a 5-degree slope. Rear opening(s) for door and cover options. Optional ProLine Frame Shelf or ProLine Grid System is recommended to provide a stationary platform for supporting deep equipment. The open bottom is suitable for joining the top to a 700-mm-tall ProLine frame.
Features and Benefits
- Enclosure is available in three heights
- The bottom of the 600x600-mm sizes can be joined through a base with cutout to a pedestal or pendant arm system
- A support bracket allows the 600x600-mm sizes to be suspended from an overhanging pendant arm system
Specifications
Specifications
Specifications
| Height | 27.85 in / 707 mm |
|---|---|
| Width | 23.94 in / 608 mm |
| Depth | 23.62 in / 600 mm |
| Protection Rating | IP55 |
| Material | Stainless Steel 304 |
| Nominal Dimensions | 700 x 600 x 600 mm |
| Front Opening | 641 x 536 mm / 25.22 x 21.11 in |
| Rear Opening | 636 x 536 mm / 25.02 x 21.11 in |
| Internal Mounting | 525 mm / 20.67 in |
| Color | Unpainted |
| Finish | Brushed |
| Thickness | 14 ga / 1.9 mm |
| BULLETIN NUMBER | P9S |
