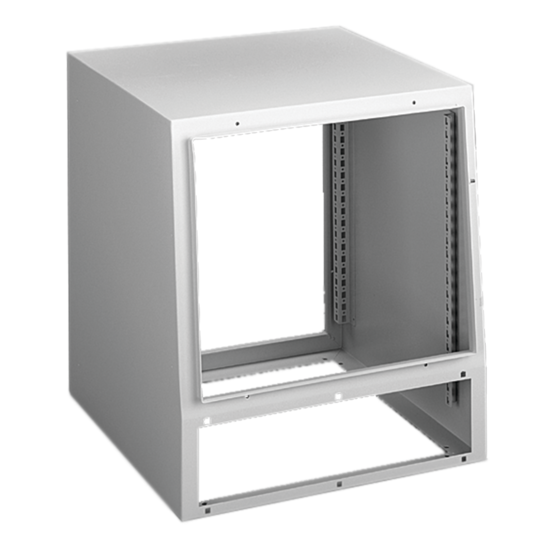

Hoffman PST7A126 | ProLine Sloped-Front HMI with Accessory Opening,...
Description
Description
A truly modular, build-your-own system, ProLine Sloped-Front HMI Enclosure with Accessory Opening foundation is extremely adaptable for nearly any application. Upper front opening for door/cover options has a 5-degree slope. Lower section is suitable for keyboard or other front options. Rear opening(s) for door and cover options. The internal mounting hole pattern accommodates most ProLine internal accessories. Optional ProLine Frame Shelf or ProLine Grid System provides a stationary platform for supporting deep equipment. The open bottom is suitable for joining the top to a 700-mm ProLine frame.
Main Features
- Enclosure is available in two heights
- The bottom of the 600x600-mm sizes can be joined through a base with cutout to a pedestal or pendant arm system
- A support bracket allows the 600x600-mm sizes to be suspended from an overhanging pendant arm system
Specifications
Specifications
Specifications
| Height | 27.56 in / 700 mm |
|---|---|
| Width | 47.24 in / 1200 mm |
| Depth | 23.62 in / 600 mm |
| Protection Rating | IP55 |
| Material | Mild Steel |
| Nominal Dimensions | 700A x 1200 x 600 mm |
| Front Opening | 641 x 1136 mm / 25.22 x 44.73 in |
| Rear Opening | 811 x 536 mm / 31.91 x 21.11 in |
| Internal Mounting | 700 mm / 27.56 in |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Powder Coated |
| BULLETIN NUMBER | P9 |
