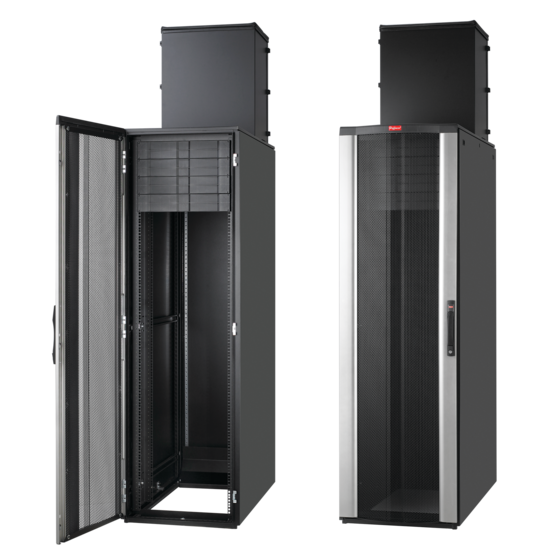

Hoffman PSTD20610BM | ProLine FloTek TD (Top Ducted) Server Cabinet, 78.37x23.94x39.43, Black, Steel

Features and Benefits

• Designed for use with 19-in. rack-mounted servers, blade servers and other equipment
• Adjustable top duct (chimney) is provided in two different standard heights to fit various Data Center ceilings
• Chimney is pre-assembled and shipped inside the cabinet to ease assembly and avoid extra parcels and shipping damage
• S-connectors provided with chimney to facilitate connection to HVAC duct work
• Edge gasket provided with chimney to prevent hot exhaust gas from mixing with cold airflow
• Cabinet is provided with seals and blocking panels to eliminate cold air bypass
• Includes two sets of fully adjustable mounting angles which are RU marked front and back to facilitate assembly
• Open base allows under-floor cable entry
• Fully perforated front door provides unrestricted cold airflow to equipment
• Front sealed 19-in. mounting rails and top/bottom air blocking plates prevent cold air bypass
• Solid rear door directs hot exhaust into chimney to prevent mixing with cold airflow
• Data center efficiency increases when cold and hot airflows are kept separate resulting in higher CRAC temperatures (cold airflow to the equipment)
• Reduces overall energy needs with more efficient cold air delivery to equipment
• Allows increased thermal loads and higher server densities inside cabinet
• Can be used on raised and non-raised floors
• Top sliding gland plate accommodates cables, cable bundles and pre-terminated patch panels
• Chimney provided with edge gasket and S-connectors
• Attractive, rigid front door made of aluminum extrusions and formed perforated steel, with more than 60 percent open space for free flow of cool air to equipment
• Front door is left-hinged and reversible
• Front and rear doors have keyed multi-point vault-style latch system and central key lock to ensure security
• Solid rear door is fully gasketed to ensure all hot exhaust is directed to top duct
• Front air dam surrounds mounting rack angles to prevent cold air bypass
• Top and sides are formed steel
• Rack angles have .375-in. spaced square holes per EIA standards
