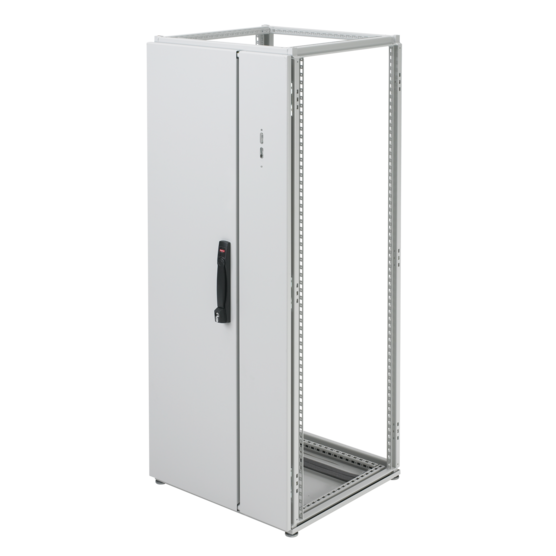

Hoffman PTDDC206 | Disconnect Door for ProLine Enclosures, fits2000...
Description
Description
Disconnect Doors provide a means to mount flange-mount disconnects to ProLine Enclosures. Hinged mullion provides unobstructed access to interior, thus easing equipment installation.
Disconnect mullion is hinged to provide easy disconnect installation and maximum access to subpanel. Removable door bar is included on disconnect door. A flush handle with defeater operates an internal 3-point latch system on disconnect door and latches to the disconnect mullion. Interlocking is provided from Primary door to disconnect mullion. The disconnect mullion and disconnect door include 140-degree hinges and are gasketed to maintain enclosure integrity.
Allen-Bradley: Large handle to be used with 400A or greater disconnect switches and 600A or greater circuit breakers.
Siemens ITE: MAX-FLEX FHOHN handle used with MD 800 amp, ND (1200 amp), PD (1600 amp) and RD (2000 amp).
Main Features
- Includes a flush handle with defeater and 3-point latching system
- Enclosures with a preferred cutout will accept the disconnect switches listed in the Preferred Cutout Overview section.
- ProLine enclosures with disconnect doors that have a large cutout provision will accept the following types of flange-mounted disconnect disconnect devices:
Specifications
Specifications
Specifications
| Material | Mild Steel |
|---|---|
| Dimensions | 1939 x 594 mm / 76.34 x 23.39 in |
| Cutout Provision | Preferred right-hand |
| Fits Frame | 2000 x 600 mm |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Powder Coated |
| Thickness | 14 ga / 1.9 mm |
| Weight | 71 lb |
| BULLETIN NUMBER | P20 |
