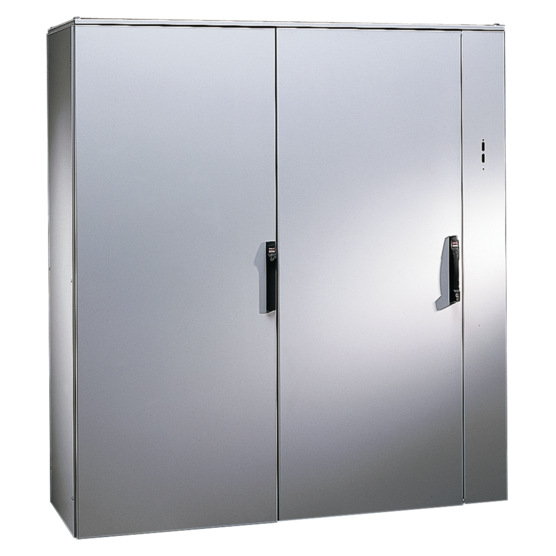

Hoffman PTDLDC20185 | ProLine-DD Disconnect Enclosure, Type 12, Lrg Cutout, 2000x1800x500
Regular price
$6,642.55
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman PTDLDC20185 | ProLine-DD Disconnect Enclosure, Type 12, Lrg...
Regular price
$6,642.55
Unit price
Brand: Hoffman
|
SKU:
654359
Regular price
$6,642.55
Unit price
Description
Description
For a modular disconnect system with application flexibility, choose a ProLine-DD Modular Enclosure. These two-door packages and their components are compatible with any of the standard flange-mounted disconnect switches and mechanisms described in the Preferred Cutout Overview section.
Main Features
- Frames are roll-formed, robotically welded with solid steel, fully welded corners; accommodates 25 mm DIN standard
- Standard door bars increase strength and rigidity and allow for an extra mounting options
- Seamless foam-in-place gasket provides a protective seal against moisture and contaminants
- Gasket and latching system together ensure a solid seal with low closure force
- Mullion door is hinged on the right, with primary and secondary doors hinged on the left
- Galvanized mounting plate in 3.0mm steel supplied standard
- Capped ground studs on door, rear and top panel
- Integral frame channels support the full weight of the mounting plates
- Frame thickness 12 gauge/2.5 mm carbon steel powder painted in RAL 7035
- Door thickness 14 gauge/2.0 mm, carbon steel powder painted – for details please check reference tables
- Rear panel(s) and solid top 1.5 mm, carbon steel powder painted; RAL 7035
- Compatible with any of the standard flange-mounted disconnect switches and mechanisms described in the Preferred Cutout Overview section.
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 12; File Number E61997
- cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997
- NEMA/EEMAC Type 12
- CSA File Number 42186: Type 12
- VDE IP55
- IEC 60529, IP55
Specifications
| Height | 78.11 in / 1984 mm |
|---|---|
| Width | 71.18 in / 1808 mm |
| Depth | 19.65 in / 499 mm |
| Protection Rating | NEMA Type 12; IP55 |
| Material | Mild Steel |
| Nominal Size | 78.74 x 70.87 x 19.69 in / 2000 x 1800 x 500 mm |
| Cutout Provision | Large |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Powder Coated |
| Thickness | 14 ga / 1.9 mm |
| Weight | 370 lb |
| BULLETIN NUMBER | P20DC |
