Hoffman PTRS242424XA | ProTek Single-Door, Type 4, 4X, 12, 24.09x23...
Description
Description

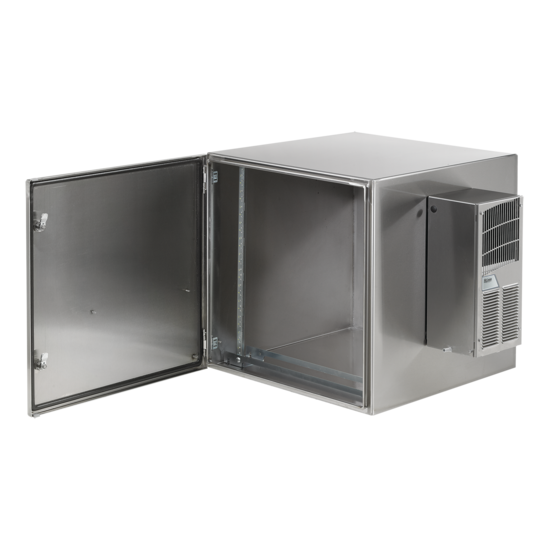

ProTek Single-Door cabinets are an excellent, off-the-shelf choice for mounting 19-inch rack, panel-mounted devices or other electronic equipment. The cabinets are designed to provide both front and rear access to 19-inch rack-mounted equipment. They provide protection against water, dirt, corrosive agents and other contaminants. ProTek is an excellent choice for applications where space is at a premium and the only option is wall mounting. ProTek comes in a broad range of sizes, materials and configurations to meet many demanding applications.
Main Features
- Solid-door cabinet provides complete physical and visual protection
- Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
- All seams are fully welded and ground smooth
- Doors are provided with ground studs to facilitate proper bonding and grounding of the cabinet
- Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
- Key-locking wing knob is included on painted steel offering, providing access control to the cabinet; two keys are included with each cabinet
- Stainless steel cabinet is provided with a quarter-turn slotted latch
- One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
- Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
Specifications
Specifications
Industry Standards
- UL 508A Listed; File Number E61997
- cUL Listed per CSA C22.2 No. 94; File Number E61997
- Solid Door: Type 4 and 12
- Window Door: Type 12
- Solid Door, Stainless Steel: Type 4, 4X and 12
- NEMA / EEMAC: Type 4, 4X or 12
- IEC 60529, IP66 or IP55, IK 10
Specifications
| Height | 24.09 in / 612 mm |
|---|---|
| Width | 23.62 in / 600 mm |
| Depth | 24.02 in / 610 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; IP66 |
| Material | Stainless Steel 304 |
| Rack Units | 12 |
| Optional Steel Panel | CP2020 |
| Optional Wood Panel | CP2020W |
| Additional Rack Angles | PTRA24T or PTRA24S |
| Color | Unpainted |
| Finish | Brushed #3 |
| Thickness | 14 ga / 1.9 mm |
| BULLETIN NUMBER | DWS12 |
