Description
Description

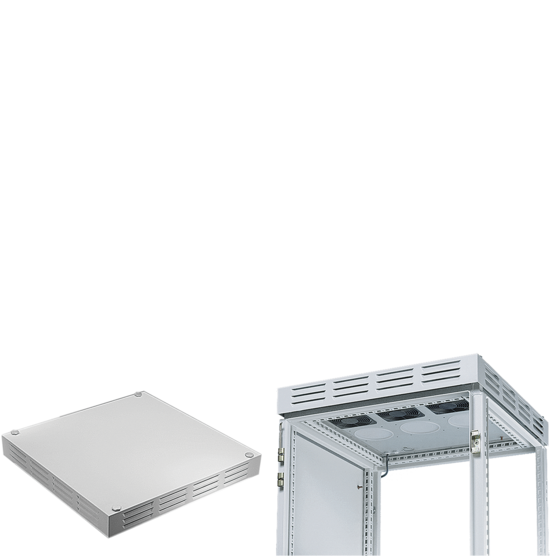

The ProLine Vented Top with Integral Fan Tray provides a cooling/ventilation solution for electronic and networking applications. An integral fan tray with three pre-wired and mounted fans provides up to 200-300 CFM of exhaust. The deeper vented tops (500- through 800-mm deep) have integral fan trays with cutouts for mounting additional fans (see Additional Fans table). Accessory fan kits (consisting of three pre-wired fans) can be installed to provide additional airflow. Unused fan positions are provided with covers to prevent short-circuiting of airflow.
Since the fan pulls air through the enclosure to cool equipment, an optional Inlet Vent (catalog number PPV32 or PPV32B) must be ordered separately.
Main Features
- Vented Top with Integral Fan Tray are finished with paint over plated surfaces
- Bolts are provided to secure the vented top to frame.
- Designed to be used in place of standard tops
- EMC tops are finished with paint over plated 16-gauge surfaces
Specifications
Specifications
Industry Standards
- UL Component Recognized; Type 1; File No. E61997
- This component is rated UL Type 1. Installing this component on an enclosure brings the enclosure rating to UL Type 1.
- NEMA/EEMAC Type 1
- IEC 60529, IP20
Specifications
| Material | Mild Steel |
|---|---|
| Voltage AC | 230 V |
| Type | EMC |
| Fits Frame Top | 600 x 500 mm |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Galvanized; Powder Coated / Galvanized; Powder Coated |
| Thickness | 16 ga / 1.52 mm |
| Weight | 28.32 lb |
| BULLETIN NUMBER | P20EM |
