Brand: Hoffman
|
SKU:
654425

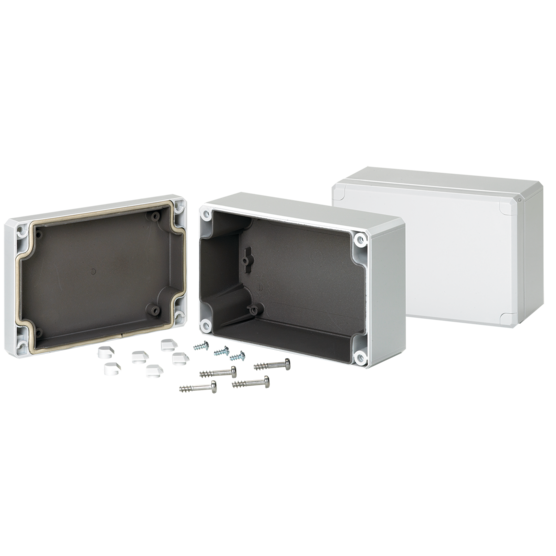

Hoffman Q1286PCEMC | QLine D, EMC, Type 4X, 120x80x55mm, Polycarbonate
Regular price
$125.32
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman Q1286PCEMC | QLine D, EMC, Type 4X, 120x80x55mm, Polycarbonate
Regular price
$125.32
Unit price
Description
Description
QLine D polycarbonate EMC enclosures have contoured bodies and flush cover screws for an attractive, contemporary appearance while also providing EMC protection in corrosive environments.
Purchase panels separately
Main Features
- Body is impact-resistant polycarbonate
- EMC conductive coating in base and cover
- Gasket of silver/silicone
- Mounting holes molded directly under cover screws
- Cross-point captivated cover screws are stainless steel
- Mounting tracks along body side walls and bosses on cover for PC card installation
- Cover screws protected by removable caps that are both aesthetic and provide tamper resistance
- Molded internal pads for mounting optional panels, rails and other components
- Screws provided for mounting optional panel
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 4X, 12, 13
- cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No. E61997
- Enclosure flammability evaluated per UL 508A
- NEMA/EEMAC Type 4, 4X, 12, 13
- IEC 60529, IP66
Related Accessories
- Catalog #: ASPB05075NM
Specifications
| Height | 4.72 in / 120 mm |
|---|---|
| Width | 3.15 in / 80 mm |
| Depth | 2.17 in / 55 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Polycarbonate |
| Interior Finish | EMC Conductive Coating |
| External Dimensions | 120 x 80 mm / 4.72 x 3.15 in |
| Internal Dimensions | 114 x 74 x 49 mm / 4.47 x 2.89 x 1.93 in |
| Panel | Q128PD |
| Panel Size | 3.58 x 2.56 in / 91 x 65 mm |
| Mounting | 4.25 x 1.97 in / 108 x 50 mm |
| Color | Light Gray |
| BULLETIN NUMBER | Q41EM |
