Hoffman Q1289PCD | Terminal-box
Regular price
$103.40
Unit price
Brand: Hoffman
|
SKU:
3614738-JBT
Regular price
$103.40
Unit price
Description
Description

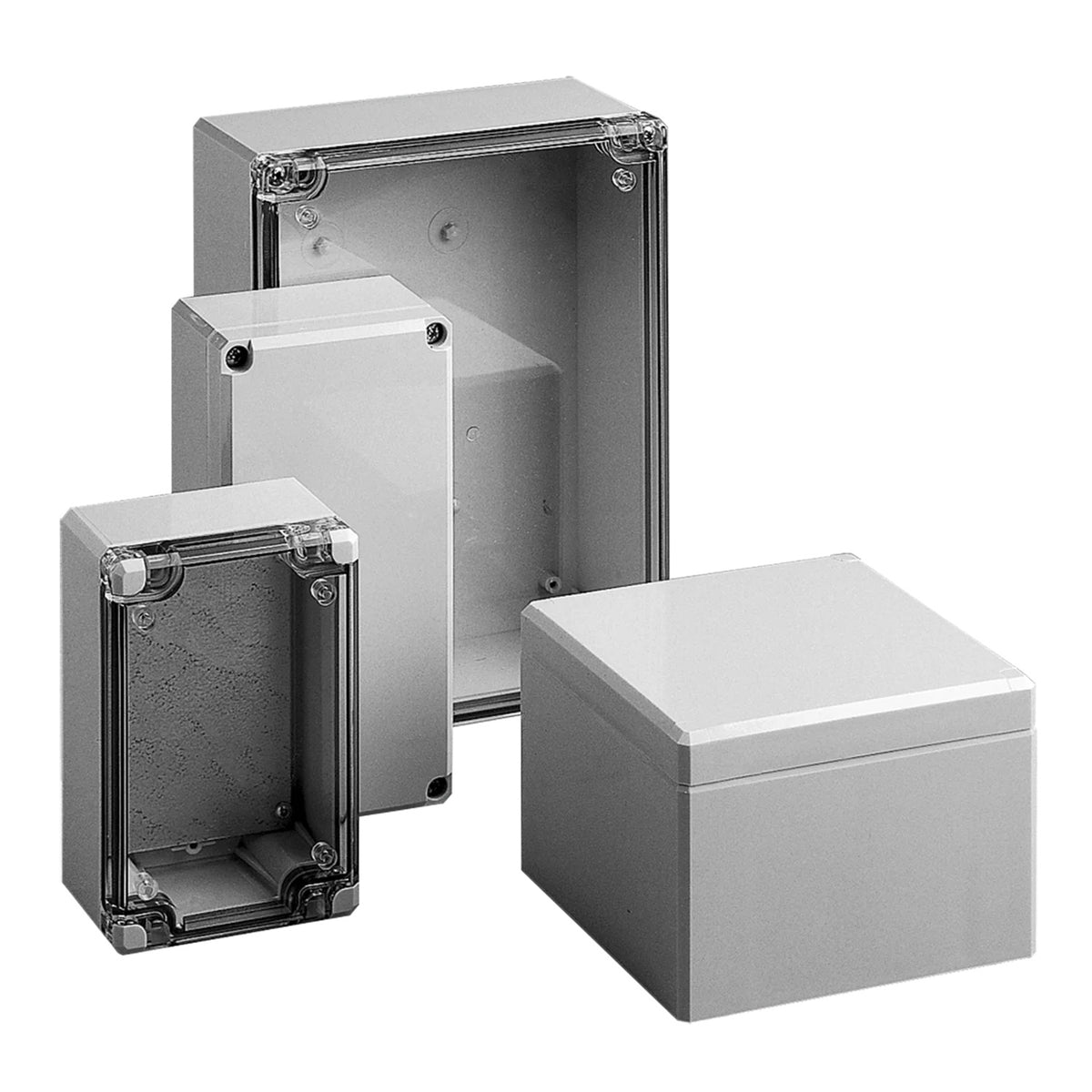

Hoffman Q1289PCD | Terminal-box
QLine D polycarbonate and ABS enclosures have contoured bodies with flush cover screws for an attractive, contemporary appearance. Tough as well as stylish, they are functional in corrosive environments and can withstand occasional submersion. The ABS series shares the same features and similar physical properties as the polycarbonate but is a more economical, non-UL rated alternative.
Hoffman - Q1289PCD - Features
- Body is impact-resistant polycarbonate for PCD series and ABS for ABD series
- Opaque and clear covers are impact-resistant polycarbonate for PCD series and ABS for ABD series
- Polycarbonate material is easily punched, drilled, filed or sawed
- Straight side walls permit ganging of multiple enclosures
- Cross-point captivated cover screws are stainless steel
- Mounting holes molded directly adjacent to cover screws
- Cover screws protected by removable caps that are aesthetic and provide tamper resistance
- Molded internal pads for mounting optional panels, rails and other components
- Panel mounting feature on both body and cover
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Screws provided for mounting optional panel
- Material is halogen free
Specifications
Specifications
Hoffman - Q1289PCD - Specifications
| Article Number | 13799 |
|---|---|
| Color Code | RAL 7035 |
| Thickness (T) | 0.12 in |
| Cover Style | Opaque |
| Height (H) | 4.45 in |
| Width (W) | 2.87 in |
| Depth (D) | 3.11 in |
| Material | Polycarbonate |
| External Dimensions (L x W) | 4.72 x 3.15 in |
| Finish | Smooth Gloss |
| Color | Light Gray |
| Panel | Q128PD |
| Panel Size (D x E) | 3.58 x 2.56 in |
| Mounting (G x H) | 4.25 x 1.97 in |
| Weight | 0.48 lb |
| UPC | 783510137991 |
