Hoffman Q16129ABD | QLine D, Type 4X, 160x120x91mm, ABS
Regular price
$68.50
Unit price
Brand: Hoffman
|
SKU:
654459
Regular price
$68.50
Unit price
Description
Description

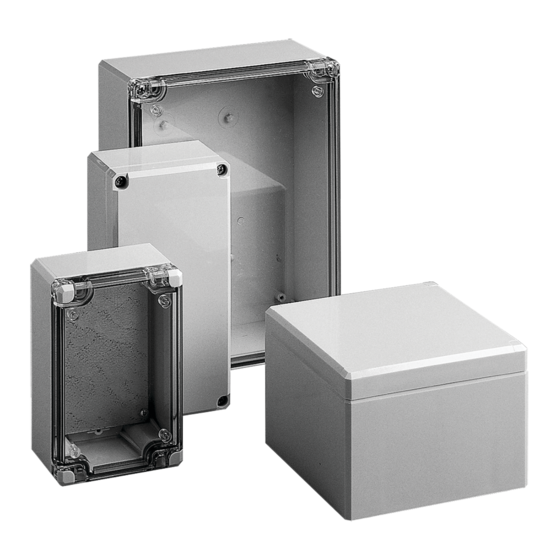

QLine D polycarbonate and ABS enclosures have contoured bodies with flush cover screws for an attractive, contemporary appearance. Tough as well as stylish, they are functional in corrosive environments and can withstand occasional submersion. The ABS series shares the same features and similar physical properties as the polycarbonate but is a more economical, non-UL rated alternative.
Purchase panels separately
Main Features
- Body is impact-resistant polycarbonate for PCD series and ABS for ABD series
- Opaque and clear covers are impact-resistant polycarbonate for PCD series and ABS for ABD series
- Polycarbonate material is easily punched, drilled, filed or sawed
- Straight side walls permit ganging of multiple enclosures
- Cross-point captivated cover screws are stainless steel
- Mounting holes molded directly adjacent to cover screws
- Cover screws protected by removable caps that are aesthetic and provide tamper resistance
- Molded internal pads for mounting optional panels, rails and other components
- Panel mounting feature on both body and cover
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Screws provided for mounting optional panel
- Material is halogen free
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 4X, 6, 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 4, 4X, 6, 12, 13; File No. E61997
- Enclosure flammability evaluated per UL 508A
- Polycarbonate Enclosure
- NEMA/EEMAC Type 4, 4X, 6, 12, 13
- CSA File No. 42186: Type 4, 4X, 6, 12, 13
- IEC 60529, IP67
Related Accessories
- Catalog #: ASPB05075NM
- Catalog #: Q16129PCD
Hoffman On Demand Alternatives
- Catalog #: Q889PCD
Specifications
| Height | 4.72 in / 120 mm |
|---|---|
| Width | 6.3 in / 160 mm |
| Depth | 3.58 in / 91 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | ABS |
| Panel Size | 5.12 x 3.94 in / 130 x 100 mm |
| Panel | Q1612PD |
| Mounting | 148 x 90 mm / 5.83 x 3.54 in |
| Cover Style | Opaque |
| External Dimensions | 6.30 x 4.72 in / 160 x 120 mm |
| Color | Light Gray |
| Color Code | RAL 7035 |
| BULLETIN NUMBER | Q41 |
