Hoffman Q18138PCEMC | QLine E, EMC, Type 4X, 175x125x74mm, Polycarb...
Regular price
$211.07
Unit price
Brand: Hoffman
|
SKU:
654491
Regular price
$211.07
Unit price
Description
Description

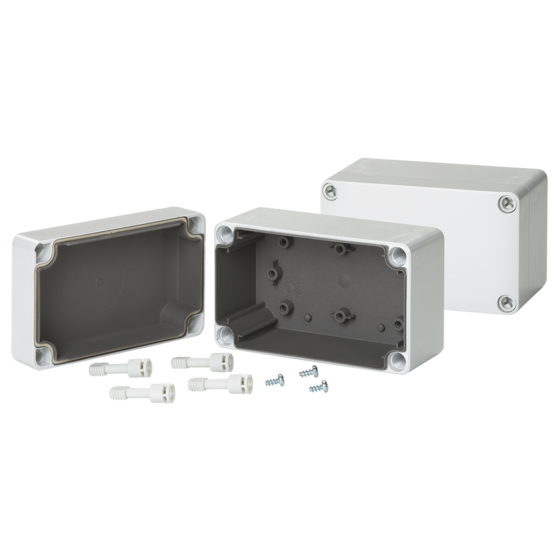

Medium-size QLine E polycarbonate EMC enclosures have contoured bodies and flush cover screws for an attractive, contemporary appearance while also providing EMC protection in corrosive environments.
Purchase panels separately
Main Features
- Body is impact-resistant polycarbonate
- EMC conductive coating in base and cover
- Gasket of silver/silicone
- Mounting holes molded directly under cover screws
- Screws provided for mounting optional panel
- Polycarbonate material is easily punched, drilled, filed or sawed
- Cross-point flush cover screws are strong, durable polyamide
- Mounting tracks along body side walls for PC card installation
- Molded internal pads for mounting optional panels, rails and other components
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No 94: Type 4, 4X, 12, 13; File No. E61997
- Enclosure flammability evaluated per UL 508A
- NEMA/EEMAC Type 4, 4X, 12, 13
- IEC 60529, IP66
Related Accessories
- Catalog #: ASPB05075NM
Specifications
| Height | 6.89 in / 175 mm |
|---|---|
| Width | 4.92 in / 125 mm |
| Depth | 2.91 in / 74 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Polycarbonate |
| Finish | Smooth Matte |
| Color | Light Gray |
| Interior Finish | EMC Conductive Coating |
| Door Thickness | 0.14 in / 4 mm |
| Body Thickness | 0.12 in / 3 mm |
| Color Code | RAL 7035 |
| Panel Size | 5.83 x 3.86 in / 148 x 98 mm |
| BULLETIN NUMBER | Q41EM |
