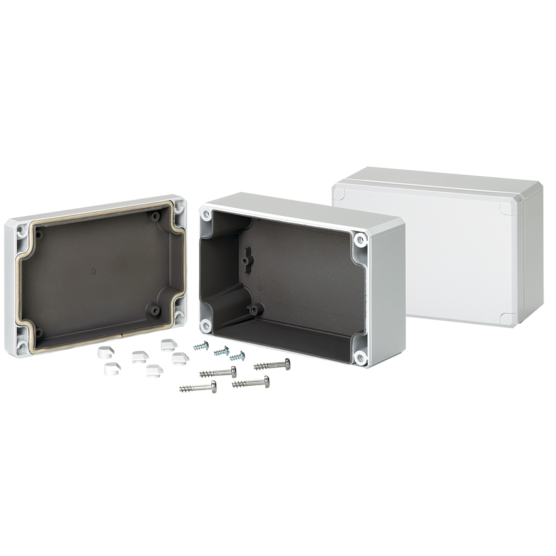

Hoffman Q20129PCEMC | QLine D, EMC, Type 4X, 200x120x85mm, Polycarb...
Regular price
$269.55
Unit price
Brand: Hoffman
|
SKU:
654516
Regular price
$269.55
Unit price
Description
Description
QLine D polycarbonate EMC enclosures have contoured bodies and flush cover screws for an attractive, contemporary appearance while also providing EMC protection in corrosive environments.
Purchase panels separately
Main Features
- Body is impact-resistant polycarbonate
- EMC conductive coating in base and cover
- Gasket of silver/silicone
- Mounting holes molded directly under cover screws
- Cross-point captivated cover screws are stainless steel
- Mounting tracks along body side walls and bosses on cover for PC card installation
- Cover screws protected by removable caps that are both aesthetic and provide tamper resistance
- Molded internal pads for mounting optional panels, rails and other components
- Screws provided for mounting optional panel
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 4X, 12, 13
- cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No. E61997
- Enclosure flammability evaluated per UL 508A
- NEMA/EEMAC Type 4, 4X, 12, 13
- IEC 60529, IP66
Related Accessories
- Catalog #: ASPB05075NM
Specifications
| Height | 7.87 in / 200 mm |
|---|---|
| Width | 4.72 in / 120 mm |
| Depth | 3.35 in / 85 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Polycarbonate |
| Interior Finish | EMC Conductive Coating |
| External Dimensions | 200 x 120 mm / 7.87 x 4.72 in |
| Internal Dimensions | 193 x 113 x 79 mm / 7.60 x 4.45 x 3.11 in |
| Panel | Q2012PD |
| Panel Size | 6.69 x 3.94 in / 170 x 100 mm |
| Mounting | 7.40 x 3.54 in / 188 x 90 mm |
| Color | Light Gray |
| BULLETIN NUMBER | Q41EM |
