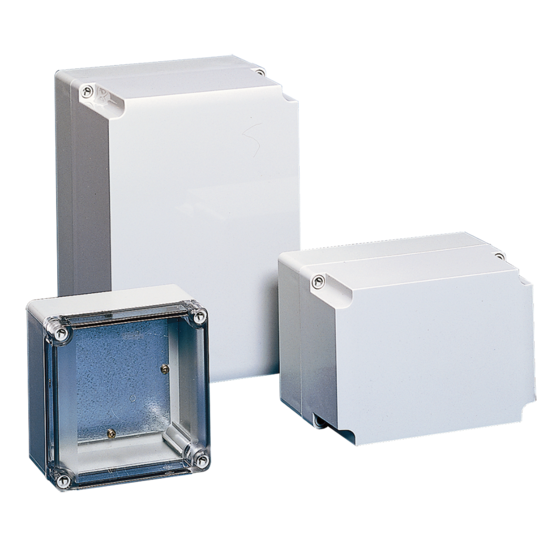

Hoffman Q25188PCE | QLine E, Type 4X, 250x175x75mm, Polycarbonate
Regular price
$221.24
Unit price
Brand: Hoffman
|
SKU:
Q-25188PCE
Regular price
$221.24
Unit price
Description
Description
QLine E Enclosures house larger controls, provide additional size-range options and offer greater internal mounting flexibility than smaller QLine products. Featuring contoured bodies with flush cover screws, they are functional in corrosive environments and can withstand occasional submersion. The ABS series shares the same features and similar physical properties as the polycarbonate but is a more economical, non-UL rated alternative.
Purchase panels separately
Main Features
- Body is impact-resistant polycarbonate for PCE series and ABS for ABE series
- Opaque and clear covers are impact-resistant polycarbonate for PCE, opaque covers are ABS for ABE series
- Polycarbonate and ABS material is easily punched, drilled, filed or sawed
- Cross-point flush cover screws are strong, durable polyamide
- Cover includes a molded-in wire lead hole
- Mounting tracks along body side walls for PC card installation
- Molded internal pads for mounting optional panels, rails and other components
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Material is halogen free
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 4X, 6, 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 4, 4X, 6, 12, 13; File No. E61997
- Enclosure flammability evaluated per UL 508A
- Polycarbonate Enclosure
- NEMA/EEMAC Type 4, 4X, 6, 12, 13
- CSA File No. 42186: Type 4, 4X, 12, 13
- IEC 60529, IP67
Related Accessories
- Catalog #: ASPB05075NM
Specifications
| Height | 9.59 in / 244 mm |
|---|---|
| Width | 6.63 in / 168 mm |
| Depth | 2.65 in / 67 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Polycarbonate |
| Finish | Smooth Matte |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Door Thickness | 0.14 in / 4 mm |
| Body Thickness | 0.12 in / 3 mm |
| Cover Style | Opaque |
| Panel Size | 8.78 x 5.83 in / 223 x 148 mm |
| BULLETIN NUMBER | Q41 |
