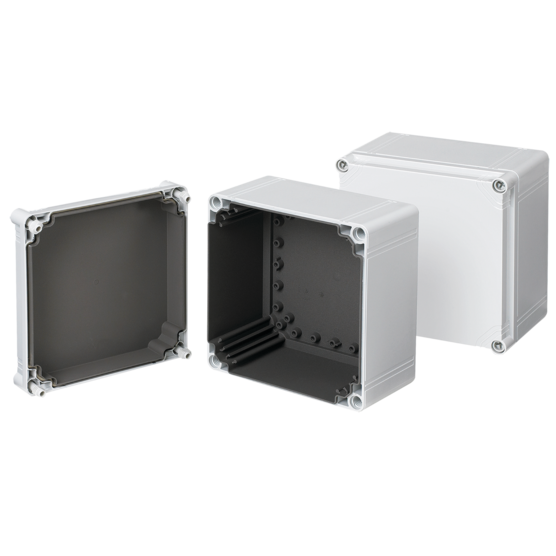

Hoffman Q402013PCEMC | QLine I, EMC, Type 4X, 400x200x123mm, Polyca...
Regular price
$732.78
Unit price
Brand: Hoffman
|
SKU:
654596
Regular price
$732.78
Unit price
Description
Description
The largest-size enclosures in the QLine EMC series, the screw-cover QLine I protects larger controls from electromagnetic interference in corrosive environments.
Purchase panels separately
Main Features
- Body is impact-resistant polycarbonate
- Polycarbonate material is easily punched, drilled, filed or sawed
- EMC coating in base and cover
- Gasket of silver/silicone
- Mounting holes molded directly under cover screws
- Molded internal pads for mounting optional panels, rails and other components
- Molded internal rails for mounting adjustable depth panel kit
- Screws provided for mounting optional panel
- Easily removable covers attached to body with strong, durable polyamide cross-point cover screws
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No. E61997
- Enclosure flammability evaluated per UL 508A
- NEMA/EEMAC Type 4, 4X, 12, 13
- IEC 60529, IP66
Related Accessories
- Catalog #: ASPB05075NM
Specifications
| Height | 15.75 in / 400 mm |
|---|---|
| Width | 7.87 in / 200 mm |
| Depth | 4.84 in / 123 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Polycarbonate |
| Interior Finish | EMC Conductive Coating |
| External Dimensions | 400 x 200 mm / 15.75 x 7.87 in |
| Internal Dimensions | 388 x 188 mm / 15.28 x 7.40 in |
| Panel | Q4020PI |
| Panel Size | 14.17 x 6.30 in / 360 x 160 mm |
| Mounting | 14.96 x 7.09 in / 380 x 180 mm |
| Color | Light Gray |
| BULLETIN NUMBER | Q41EM |
