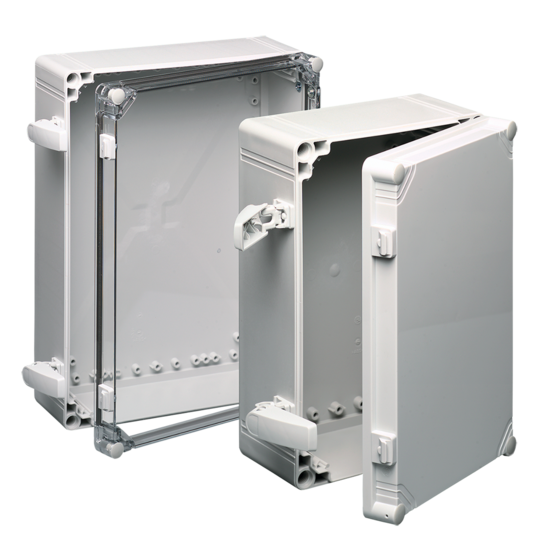

Hoffman Q402013PCI | QLine I, Type 4X, 400x200x132mm, Polycarbonate
Regular price
$265.74
Unit price
Brand: Hoffman
|
SKU:
654597
Regular price
$265.74
Unit price
Description
Description
The largest-sized QLine enclosure, QLine I provides easy access and protects larger controls from corrosive environments. Choose from screw cover, hinge, internal mounting, variable depth and quick-release latch options to meet your design and security requirements. The ABS series shares the same features and similar physical properties as the polycarbonate but is a more economical, non-UL rated alternative.
Purchase panels and extension rings separately
Main Features
- Body is impact-resistant polycarbonate for PCI series and ABS for ABI series
- Opaque and clear covers are impact-resistant polycarbonate for PCI, opaque covers are ABS for ABI series
- Polycarbonate and ABS material is easily punched, drilled, filed or sawed
- Mounting holes molded directly under cover screws
- Molded internal pads for mounting optional panels, rails and other components
- Molded internal rails for mounting adjustable-depth panel kit
- Screws provided for mounting optional panel
- Optional extension rings are molded polycarbonate
- Cover includes a molded-in hole for wire lead
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Material is halogen free
- Screw Cover Enclosures have easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws
- Enclosures with Quick-Release Latches have polycarbonate hinges and polyester latches with a padlock provision
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No. E61997
- Enclosure flammability evaluated per UL 508A
- Polycarbonate Enclosure
- NEMA/EEMAC Type 4, 4X, 12, 13
- CSA File No. 42186: Type 4, 4X, 12, 13
- IEC 60529, IP66
Related Accessories
- Catalog #: ASPB05075NM
- Catalog #: QIHK
Specifications
| Height | 15.28 in / 388 mm |
|---|---|
| Width | 7.4 in / 188 mm |
| Depth | 4.84 in / 123 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Polycarbonate |
| Panel Size | 14.17 x 6.30 in / 360 x 160 mm |
| Mounting | 14.96 x 7.09 in / 380 x 180 mm |
| Panel | Q4020PI |
| Cover Style | Opaque |
| Latch Type | Screw Cover |
| External Dimensions | 400 x 200 mm / 15.75 x 7.87 in |
| Extension Ring | Q4020EXTI |
| BULLETIN NUMBER | Q41 |
