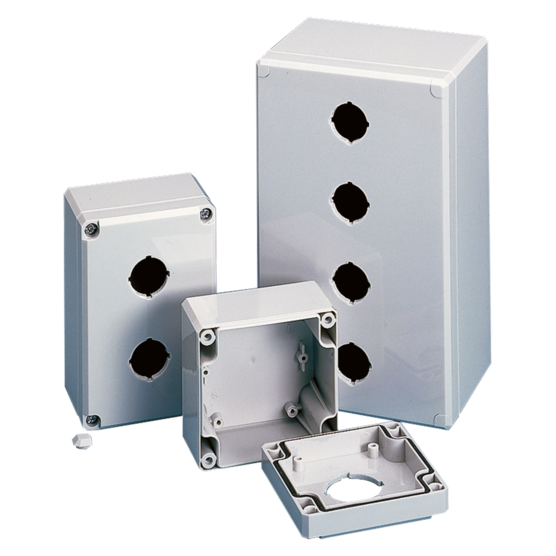

Hoffman Q4PBPCDM | QLine D Pushbutton, Type 4X, 4PB x 22.5mm, Polyc...
Regular price
$136.05
Unit price
Brand: Hoffman
|
SKU:
654624
Regular price
$136.05
Unit price
Description
Description
Used for insulating and housing 30.5-mm or 22.5-mm pushbuttons in hostile environments, QLine D Enclosures have contoured bodies with flush cover screws for an attractive, contemporary appearance.
Purchase panels separately
Main Features
- High-impact polycarbonate material is used for both body and cover
- Polycarbonate material is easily punched, drilled, filed or sawed
- Straight side walls permit ganging of multiple enclosures
- Cross-point captivated cover screws are stainless steel
- Mounting holes molded directly adjacent to cover screws
- Cover screws protected by removable caps that are both aesthetic and provide tamper resistance
- Molded internal pads for mounting optional panels, rails or other components
- Seamless foam-in-place gasket assures watertight and dust-tight seal
- Screws provided for mounting optional panel
- Optional panels are unpainted plated steel
- Mounting hardware furnished
- Material is halogen free
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 4X, 12, 13; No. E61997
- cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; No. E61997
- Enclosure flammability evaluated per UL 508A
- NEMA/EEMAC Type 4, 4X, 12
- CSA File Number 42186: Type 4, 4X, 12
- IEC 60529, IP67
Hoffman On Demand Alternatives
- Catalog #: Q1PBPCDM
Specifications
| Height | 7.6 in / 193 mm |
|---|---|
| Width | 4.45 in / 113 mm |
| Depth | 3.11 in / 79 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Polycarbonate |
| Finish | Smooth Gloss |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Thickness | 0.12 in / 3 mm |
| Hole Size | 22.5 mm |
| External Dimensions | 7.87 x 4.72 in / 200 x 120 mm |
| Panel | Q2012PD |
| BULLETIN NUMBER | Q41 |
