Brand: Hoffman
|
SKU:
9890061

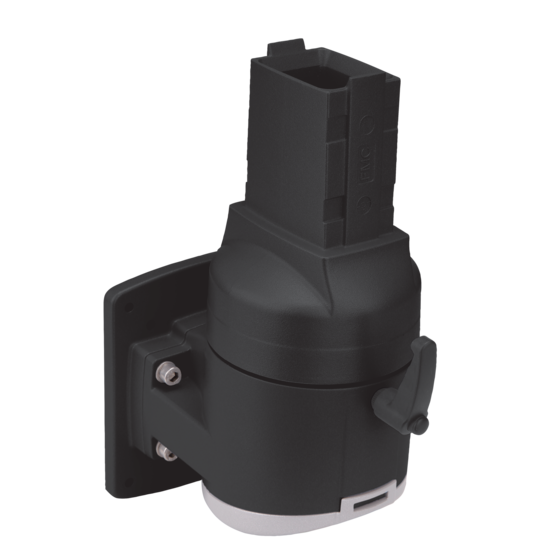

Hoffman S1MPCV | Syspend 180-Max Vertical Panel Coupling, 10.07x5.51x4.72, Black, Aluminum
Regular price
$1,330.59
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman S1MPCV | Syspend 180-Max Vertical Panel Coupling, 10.07x5.5...
Regular price
$1,330.59
Unit price
Description
Description
Syspend 180-Max Vertical Panel Coupling mounts a vertical tube to the back of an enclosure or screen using Video Electronics Standards Association (VESA) mounting. The coupling has mounting holes drilled for standard VESA 75 and 100 flange sizes. It enables the enclosure to rotate 300 degrees and can be locked into a given position. The vertical panel coupling has a safety stop and maintenance-free bearings.
Main Features
- Coupling can rotate 300 degrees with stop
- Gasket, set screws, and mounting hardware are included
- White aluminum cable access cap is included
Specifications
Specifications
Related Accessories
- Catalog #: S1MRL
- Catalog #: S1MRHK
- Catalog #: S1MRCRK
- Catalog #: S1MSLAR
Hoffman On Demand Alternatives
- Catalog #: S1MPCV
Specifications
| Height | 10.07 in / 256 mm |
|---|---|
| Width | 5.51 in / 140 mm |
| Depth | 4.72 in / 120 mm |
| Material | Aluminum |
| Color | Jet Black |
| Color Code | RAL 9005 |
| Finish | Powder Coated |
| Thickness | 0.22 in / 5.5 mm |
| Weight | 6 lb |
| BULLETIN NUMBER | CS5 |
