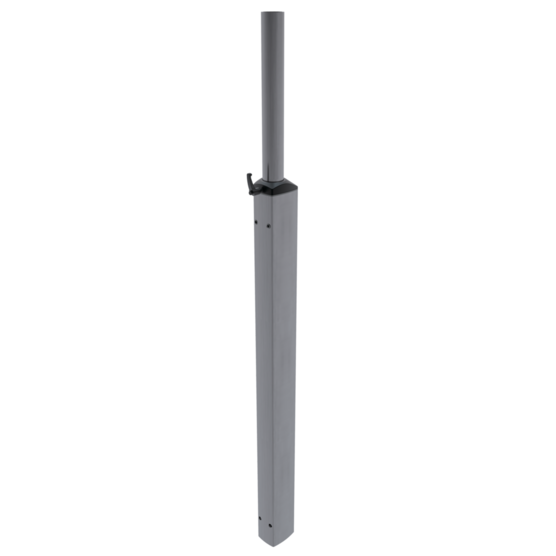

Hoffman S2M10VP77 | Syspend 281-Max Vertical Motion Pedestal Tube, 57-77 lb. load capacity, Aluminum
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman S2M10VP77 | Syspend 281-Max Vertical Motion Pedestal Tube, ...
Description
Description
Syspend 281-Max Vertical Motion Pedestal Tube is a vertical adjustable tube with a lift range of 250mm, allowing enclosure to be positioned at the optimal viewing height for different operators. The 48-mm Round Tube Flange Coupling (S2MFC48) and Adapter (S2MA48) is required for attachment to HMI enclosures with a 60 x 60-mm hole pattern (i.e. Syspend Aluminum HMI and Concept HMI). The weight of the coupling, adapter plate, enclosure and internal components must be factored into the load when selecting a tube.
Main Features
- Adjustable from 1130 mm (44.49 in.) to 1380 mm (54.33 in.) with internal gas springs
- Four models support loads ranging from 11 to 77 lb. (4.9 to 34.9 kg)
- Height is fixed in place at any position by locking handle
- Cables are separated from gas springs inside the tube
- Internal strain-relief for cables inside the tube
- Can be attached to Small Pedestal Base, Vertical Wall Joint, Wall Flange, Rotary Base, Elbow or Rotatable Elbow
- Tube cannot be inverted for overhead mounting on the enclosure
Specifications
Specifications
Specifications
| Height | 54.3307086614173 in / 1380 mm |
|---|---|
| Width | 2.75590551181102 in / 70 mm |
| Depth | 3.54330708661417 in / 90 mm |
| Material | Aluminum |
| Max L | 350 mm / 13.78 in |
| Min L | 100 mm / 3.94 in |
| Load Capacity | 57-77 lb. lb |
| Color | Unpainted |
| Finish | Anodized |
| Thickness | 0.24 in / 6 mm |
| Weight | 17 lb |
| BULLETIN NUMBER | CS4 |
