Hoffman S2MFC48 | Syspend 281-Max 48-mm Round Tube Flange Coupling,...
Description
Description

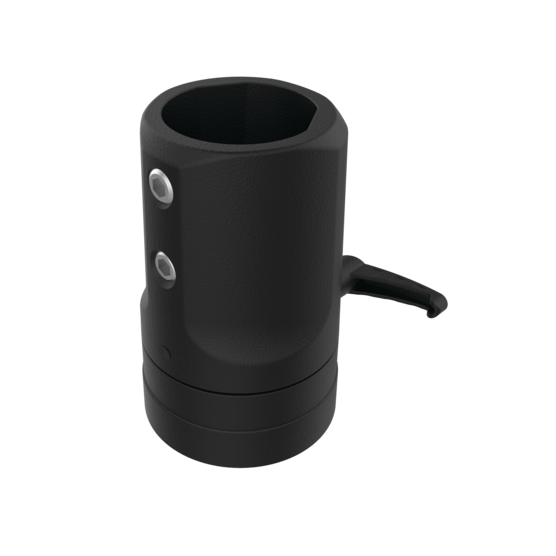

Syspend 281-Max 48-mm Round Tube Flange Coupling attaches the Vertical Motion Pedestal Tube or any 48-mm round tube to the enclosure. Enclosure can be rotated 300 degrees and locked in position. Includes safety stop and maintenance-free bearing.
Syspend 281-Max Adapter is required to attach the Flange Coupling to a standard HOFFMAN HMI enclosure that uses a 60 x 60-mm hole pattern (i.e. Syspend Aluminum HMI and Concept HMI). Adapter is not required as the Coupling attaches to enclosure using a 48 x 48-mm hole pattern directly.
Main Features
- Gasket and mounting hardware are included
Specifications
Specifications
Specifications
| Height | 5 in / 127 mm |
|---|---|
| Width | 3.1496062992126 in / 80 mm |
| Depth | 3.1496062992126 in / 80 mm |
| Material | Aluminum |
| Color | Jet Black |
| Color Code | RAL 9005 |
| Finish | Powder Coated |
| Weight | 1.7 lb |
| BULLETIN NUMBER | CS4 |
