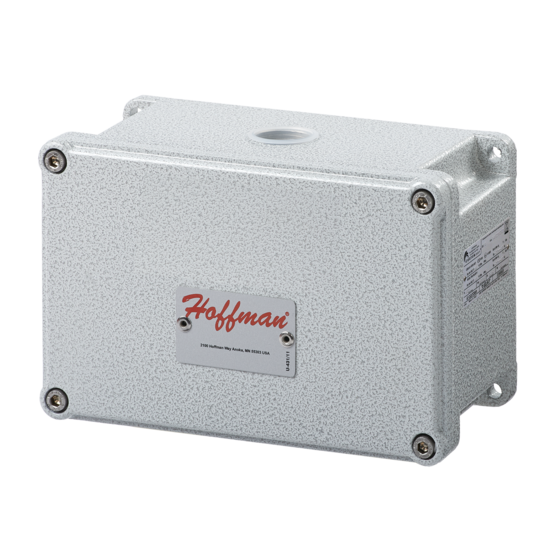

Hoffman SA090907 | Zonex SA Series Junction Boxes, Aluminum, 9x9x7cm
Regular price
$306.42
Unit price
Brand: Hoffman
|
SKU:
654751
Regular price
$306.42
Unit price
Description
Description
Zonex SA series junction boxes are suitable for increased safety or intrinsically safe enclosures applicable for Zone 1, 2, 21 or 22 with ATEX and IECEx certifications. They can be supplied with multipolar terminal blocks or modular terminal blocks. They can also be equipped with pilot lights, push buttons and measuring instruments. Body and cover can be drilled and threaded according to customers' specifications. In accordance with rules, nVent HOFFMAN must perform the drilling.
Main Features
- Low copper aluminum alloy and stainless steel bolts and screws for corrosion resistance
- Screw cover configuration for easy access
- High temperature-resistant silicone gasket provides IP66 rating
- Fixed mounting holes for easy installation
- Internal mounting panel included
- Body and cover can be drilled according to customers' specifications
Specifications
Specifications
Related Accessories
- Catalog #: ATPLGA70
Specifications
| Height | 3.54 in / 90 mm |
|---|---|
| Width | 3.54 in / 90 mm |
| Depth | 2.95 in / 75 mm |
| Material | Aluminum |
| Weight | 3.53 lb / 1.6 kg / 3.53 lb |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Epoxy Coated |
| Thickness | 0.16 in / 4 mm |
| BULLETIN NUMBER | HL4 |
