Brand: Hoffman
|
SKU:
646622
Hoffman SF0416414 | IP54 4" Filter Fan 115V 7035
Regular price
$116.05
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog

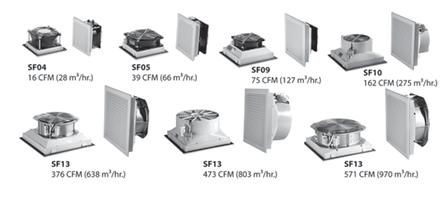

Hoffman SF0416414 | IP54 4" Filter Fan 115V 7035
Regular price
$116.05
Unit price
Description
Description
Hoffman SF0416414 | IP54 4" Filter Fan 115V 7035
Click fit design quickly installs into enclosure wall; no tools or screws required. Simple snap-open grille for easy filter replacement. Enclosure side wall mounting. Reverse airflow option on SF13 models available to push/pull air through higher static pressure. Standard foam-in-place gasket. Similar cut-out sizes as other filter fan manufacturers. Terminal wire connections. Optional thermostat available to save energy and extend service life.
Hoffman - SF0416414 - Features
- Click-fit design quickly installs into enclosure wall; no tools or screws required
- Simple snap-open grille for easy filter replacement
- Enclosure side wall mounting
- Optional thermostat available to save energy and extend service life
- Similar cut-out sizes as other filter fan manufacturers
- Standard foam-in-place gasket
- Terminal wire connections
- Reverse airflow option on SF13 models available to push/pull air through higher static pressure
- Applications
- Wind energy systems
- Package handling equipment
- Food and beverage process controls
- Automotive assembly
- Industrial automation
- Finish
- RAL 9011 black, UV-resistant plastic optional
- RAL 7035 light-gray, UV-resistant plastic standard
- Accessories
- Rain shroud
- Thermostat
- Replacement filters
- Specifications
- Operating temperature range fo -4 F/-20 C to 149 F/65 C
- Service life hours from 40000 to 70000 hours
- Free air flow from 16 CFM (28 m3/hr.) to 571 CFM (920 m3/hr.)
- Size rage from 4 in. (102 mm) to 13 in. (325 mm)
Specifications
Specifications
Hoffman - SF0416414 - Product Categories
- Enclosures
- Enclosures
- Thermal Management
- Filter Fans
Hoffman - SF0416414 - Technical Information
| Amperage | 1.40/1.20 Amp |
|---|---|
| Applications | Industrial |
| Current | 1.40/1.20 Amp |
| Frequency | 50/60 Hz |
| Max Temperature | 131 degrees F |
| Min Temperature | 14 degrees F |
| Number of Phases | 1 Phase |
| Size | 4.13x4.13x2.17 in |
| Standard | CE,CSA (fan Motor Only),IP54 Standard,Type 12,UL/cUL Recognized |
| Type | SF04 16 CFM (28 m3/hr.) Side-Mount Filter Fan |
| Voltage | 115 Volt |
Hoffman - SF0416414 - Dimensions
| Depth | 2.17 Inch |
|---|---|
| Height | 4.13 Inch |
| Width | 4.13 in |
Hoffman - SF0416414 - General Specifications
| Brand | nVent Hoffman |
|---|---|
| Sub Brand | Hoffman |
| 12-Digit UPC | 783510199944 |
| Finish | Gray |
| GTiN | 00783510199944 |
| Product UPC | 78351019994 |
| Weight | .73 lb |
