Brand: Hoffman | SKU: 646626

Hoffman SF0426414 | IP54 4" Filter Fan, 230V, RAL 7035

Name: Hoffman SF0426414 | IP54 4" Filter Fan, 230V, RAL 7035
Brand: Anixter
SKU: 646626
Price: 118.56 USD
Availability: InStock

$118.56

Shipping calculated at checkout.

Description

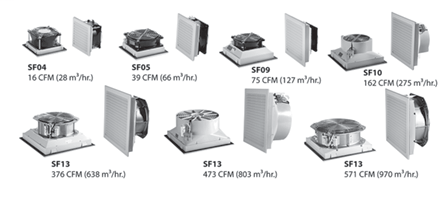

IP54 4" Filter Fan 230V 7035, Bulletin MCLF (Filter Fans), Size/Dims: 4.13x4.13x2.17

Click-fit design quickly installs into enclosure wall; no tools or screws required
Reverse airflow option on SF13 models available to push/pull air through higher static pressure
Standard foam-in-place gasket
Terminal wire connections
Simple snap-open grille for easy filter replacement
Similar cut-out sizes as other filter fan manufacturers
Enclosure side wall mounting
Optional thermostat available to save energy and extend service life
Applications
Industrial automation
Food and beverage process controls
Package handling equipment
Wind energy systems
Automotive assembly
Finish
RAL 7035 light-gray, UV-resistant plastic standard
RAL 9011 black, UV-resistant plastic optional
Accessories
Thermostat
Rain shroud
Replacement filters
Specifications
Operating temperature range fo -4 F/-20 C to 149 F/65 C
Free air flow from 16 CFM (28 m3/hr.) to 571 CFM (920 m3/hr.)
Size rage from 4 in. (102 mm) to 13 in. (325 mm)
Service life hours from 40000 to 70000 hours

Amperage	0.7 Amp
Applications	Industrial
Current	0.70 Amp
Frequency	50/60 Hz
Max Temperature	131 degrees F
Min Temperature	14 degrees F
Number of Phases	1 Phase
Size	4.13x4.13x2.17 in
Standard	CE,CSA (fan Motor Only),IP54 Standard,Type 12,UL/cUL Recognized
Type	SF04 16 CFM (28 m3/hr.) Side-Mount Filter Fan
Voltage	230 Volt
