Brand: Hoffman
|
SKU:
646635
Hoffman SF0524514 | IP55 5" Filter Fan 24V 7035
Regular price
$223.11
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman SF0524514 | IP55 5" Filter Fan 24V 7035
Regular price
$223.11
Unit price
Description
Description
Hoffman SF0524514 | IP55 5" Filter Fan 24V 7035
IP55 5" Filter Fan 24V 7035, Bulletin MCLF (Filter Fans), Size/Dims: 5.83x5.83x2.56
Hoffman - SF0524514 - Features
- Standard foam-in-place gasket
- Similar cut-out sizes as other filter fan manufacturers
- Terminal wire connections
- Click-fit design quickly installs into enclosure wall; no tools or screws required
- Optional thermostat available to save energy and extend service life
- Reverse airflow option on SF13 models available to push/pull air through higher static pressure
- Simple snap-open grille for easy filter replacement
- Enclosure side wall mounting
- Applications
- Wind energy systems
- Package handling equipment
- Industrial automation
- Food and beverage process controls
- Automotive assembly
- Finish
- RAL 9011 black, UV-resistant plastic optional
- RAL 7035 light-gray, UV-resistant plastic standard
- Accessories
- Rain shroud
- Replacement filters
- Thermostat
- Specifications
- Operating temperature range fo -4 F/-20 C to 149 F/65 C
- Service life hours from 40000 to 70000 hours
- Free air flow from 16 CFM (28 m3/hr.) to 571 CFM (920 m3/hr.)
- Size rage from 4 in. (102 mm) to 13 in. (325 mm)
Specifications
Specifications
Hoffman - SF0524514 - Product Categories
- Heat, Ventilation & Builder Products
- Exhaust & Ventilation
- Air Filters
Hoffman - SF0524514 - Technical Information
| Amperage | 0.17 Amp |
|---|---|
| Applications | Industrial |
| Current | .17 Amp |
| Max Temperature | 131 degrees F |
| Min Temperature | 14 degrees F |
| Number of Phases | 1 Phase |
| Size | 5.83x5.83x2.56 in |
| Standard | CE,CSA (fan Motor Only),IP54 Standard,IP55 Optional,Type 12,UL/cUL Recognized |

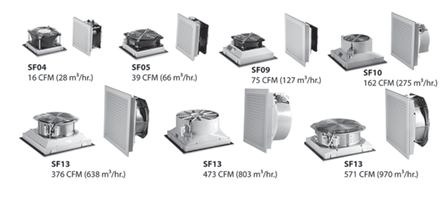

| Type | SF05 39 CFM (66 m3/hr.) Side-Mount Filter Fan |
| Voltage | 24 Volt |
Hoffman - SF0524514 - Dimensions
| Depth | 2.56 Inch |
|---|---|
| Height | 5.83 Inch |
| Width | 5.83 in |
Hoffman - SF0524514 - General Specifications
| Brand | nVent Hoffman |
|---|---|
| Sub Brand | Hoffman |
| 12-Digit UPC | 783510200930 |
| Finish | Gray |
| GTiN | 00783510200930 |
| Product UPC | 78351020093 |
| Weight | 1.19 lb |
