Brand: Hoffman | SKU: 646639

Hoffman SF0526514 | IP55 5" Filter Fan, 24V, RAL 7035

Name: Hoffman SF0526514 | IP55 5" Filter Fan, 24V, RAL 7035
Brand: Hoffman
SKU: 646639
Price: 207.02 USD
Availability: InStock

$207.02

Shipping calculated at checkout.

Description

IP55 5" Filter Fan 230V 7035, Bulletin MCLF (Filter Fans), Size/Dims: 5.83x5.83x2.56

Enclosure side wall mounting
Reverse airflow option on SF13 models available to push/pull air through higher static pressure
Standard foam-in-place gasket
Optional thermostat available to save energy and extend service life
Click-fit design quickly installs into enclosure wall; no tools or screws required
Terminal wire connections
Simple snap-open grille for easy filter replacement
Similar cut-out sizes as other filter fan manufacturers
Applications
Package handling equipment
Automotive assembly
Wind energy systems
Industrial automation
Food and beverage process controls
Finish
RAL 9011 black, UV-resistant plastic optional
RAL 7035 light-gray, UV-resistant plastic standard
Accessories
Rain shroud
Thermostat
Replacement filters
Specifications

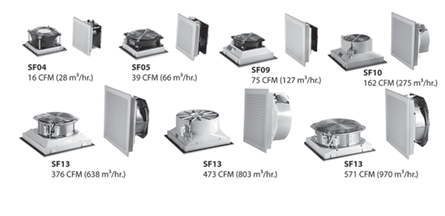

Size rage from 4 in. (102 mm) to 13 in. (325 mm)
Operating temperature range fo -4 F/-20 C to 149 F/65 C
Free air flow from 16 CFM (28 m3/hr.) to 571 CFM (920 m3/hr.)
Service life hours from 40000 to 70000 hours

Amperage	0.11 Amp
Applications	Industrial
Current	.11 Amp
Frequency	50/60 Hz
Max Temperature	131 degrees F
Min Temperature	14 degrees F
Number of Phases	1 Phase
Size	5.83x5.83x2.56 in
Standard	CE,CSA (fan Motor Only),IP54 Standard,IP55 Optional,Type 12,UL/cUL Recognized
Type	SF05 39 CFM (66 m3/hr.) Side-Mount Filter Fan
Voltage	230 Volt
