Brand: Hoffman
|
SKU:
646657
Hoffman SF0948414 | 9" Filter Fan, IP54, 48V, RAL 7035
Regular price
$237.13
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman SF0948414 | 9" Filter Fan, IP54, 48V, RAL 7035
Regular price
$237.13
Unit price
Description
Description
Hoffman SF0948414 | 9" Filter Fan, IP54, 48V, RAL 7035
IP54 9" Filter Fan 48V 7035, Bulletin MCLF (Filter Fans), Size/Dims: 8.03x8.03x3.54
Hoffman - SF0948414 - Features
- Reverse airflow option on SF13 models available to push/pull air through higher static pressure
- Click-fit design quickly installs into enclosure wall; no tools or screws required
- Optional thermostat available to save energy and extend service life
- Standard foam-in-place gasket
- Similar cut-out sizes as other filter fan manufacturers
- Simple snap-open grille for easy filter replacement
- Terminal wire connections
- Enclosure side wall mounting
- Applications
- Food and beverage process controls
- Package handling equipment
- Automotive assembly
- Wind energy systems
- Industrial automation
- Finish
- RAL 9011 black, UV-resistant plastic optional
- RAL 7035 light-gray, UV-resistant plastic standard
- Accessories
- Thermostat
- Replacement filters
- Rain shroud
- Specifications
- Service life hours from 40000 to 70000 hours
- Size rage from 4 in. (102 mm) to 13 in. (325 mm)
- Free air flow from 16 CFM (28 m3/hr.) to 571 CFM (920 m3/hr.)
- Operating temperature range fo -4 F/-20 C to 149 F/65 C
Specifications
Specifications
Hoffman - SF0948414 - Product Categories
- Heat, Ventilation & Builder Products
- Exhaust & Ventilation
- Bathroom Fan
- Fan Only
Hoffman - SF0948414 - Technical Information
| Amperage | 0.08 Amp |
|---|---|
| Applications | Industrial |
| Current | 0.08 Amp |
| Max Temperature | 149 degrees F |
| Min Temperature | -4 degrees F |
| Number of Phases | 1 Phase |
| Size | 8.03x8.03x3.54 in |
| Standard | CE,CSA (fan Motor Only),IP54 Standard,IP55 Optional,Type 12,UL/cUL Recognized |

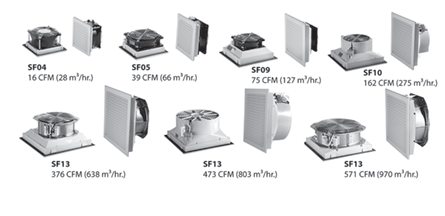

| Type | SF09 75 CFM (127 m3/hr.) Side-Mount Filter Fan |
| Voltage | 48 Volt |
Hoffman - SF0948414 - Dimensions
| Depth | 3.54 Inch |
|---|---|
| Height | 8.02 Inch |
| Width | 8.02 in |
Hoffman - SF0948414 - General Specifications
| Brand | nVent Hoffman |
|---|---|
| Sub Brand | Hoffman |
| 12-Digit UPC | 783510200138 |
| Finish | Gray |
| GTiN | 00783510200138 |
| Product UPC | 78351020013 |
| Weight | 1.74 lb |
