Hoffman SF1016413 | 10" Filter Fan, IP54, 115V, RAL 9011
Description
Description
Click-fit design quickly installs into enclosure wall; no tools or screws required. Simple snap open grille for easy filter replacement. Enclosure side wall mounting. Reverse airflow option on SF13 models available to push/pull air through higher static pressure. Standard foam in place gasket. Similar cut out sizes as other filter fan manufacturers. Terminal wire connections. Optional thermostat available to save energy and extend service life.
Hoffman - SF1016413 - Features
- Enclosure side wall mounting
- Reverse airflow option on SF13 models available to push/pull air through higher static pressure
- Standard foam-in-place gasket
- Click-fit design quickly installs into enclosure wall; no tools or screws required
- Optional thermostat available to save energy and extend service life
- Terminal wire connections
- Simple snap-open grille for easy filter replacement
- Similar cut-out sizes as other filter fan manufacturers
- Applications
- Industrial automation
- Food and beverage process controls
- Wind energy systems
- Automotive assembly
- Package handling equipment
- Finish
- RAL 9011 black, UV-resistant plastic optional
- RAL 7035 light-gray, UV-resistant plastic standard
- Accessories
- Rain shroud
- Replacement filters
- Thermostat
- Specifications
- Operating temperature range fo -4 F/-20 C to 149 F/65 C
- Service life hours from 40000 to 70000 hours
- Size rage from 4 in. (102 mm) to 13 in. (325 mm)

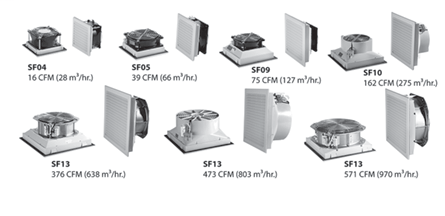

- Free air flow from 16 CFM (28 m3/hr.) to 571 CFM (920 m3/hr.)
Specifications
Specifications
Hoffman - SF1016413 - Product Categories
- Enclosures
- Enclosures
- Thermal Management
- Filter Fans
Hoffman - SF1016413 - Technical Information
| Amperage | 0.5 Amp |
|---|---|
| Applications | Industrial |
| Current | .53/.50 Amp |
| Max Temperature | 131 degrees F |
| Min Temperature | 14 degrees F |
| Number of Phases | 1 Phase |
| Size | 9.84x9.84x4.72 in |
| Standard | CE,CSA (fan Motor Only),IP54 Standard,IP55 Optional,Type 12,UL/cUL Recognized |
| Type | SF10 162 CFM (275 m3/hr.) Side-Mount Filter Fan |
| Voltage | 115 Volt |
Hoffman - SF1016413 - Dimensions
| Depth | 4.72 Inch |
|---|---|
| Height | 9.84 Inch |
| Width | 9.84 in |
Hoffman - SF1016413 - General Specifications
| Brand | nVent Hoffman |
|---|---|
| Sub Brand | Hoffman |
| 12-Digit UPC | 783510200367 |
| Finish | Black |
| GTiN | 00783510200367 |
| Product UPC | 78351020036 |
| Weight | 4.19 lb |
