Hoffman SF1016513 | 10" Filter Fan, IP55, 115V, RAL 9011
Description
Description
Click fit design quickly installs into enclosure wall; no tools or screws required. Simple snap-open grille for easy filter replacement. Enclosure side wall mounting. Reverse airflow option on SF13 models available to push/pull air through higher static pressure. Standard foam-in-place gasket. Similar cut-out sizes as other filter fan manufacturers. Terminal wire connections. Optional thermostat available to save energy and extend service life.
Hoffman - SF1016513 - Features
- Enclosure side wall mounting
- Standard foam-in-place gasket
- Terminal wire connections
- Simple snap-open grille for easy filter replacement
- Optional thermostat available to save energy and extend service life
- Click-fit design quickly installs into enclosure wall; no tools or screws required
- Reverse airflow option on SF13 models available to push/pull air through higher static pressure
- Similar cut-out sizes as other filter fan manufacturers
- Applications
- Industrial automation
- Package handling equipment
- Wind energy systems
- Automotive assembly
- Food and beverage process controls
- Finish
- RAL 7035 light-gray, UV-resistant plastic standard
- RAL 9011 black, UV-resistant plastic optional
- Accessories
- Thermostat
- Replacement filters
- Rain shroud
- Specifications
- Operating temperature range fo -4 F/-20 C to 149 F/65 C

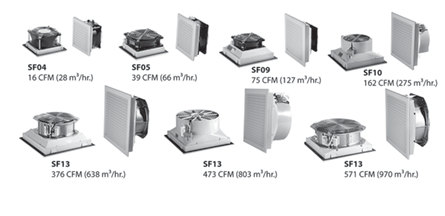

- Free air flow from 16 CFM (28 m3/hr.) to 571 CFM (920 m3/hr.)
- Size rage from 4 in. (102 mm) to 13 in. (325 mm)
- Service life hours from 40000 to 70000 hours
Specifications
Specifications
Hoffman - SF1016513 - Product Categories
- Data & Communication
- Racks, Enclosures & Cable Management
- Enclosure & Cabinet Accessories
Hoffman - SF1016513 - Technical Information
| Amperage | 0.5 Amp |
|---|---|
| Applications | Industrial |
| Current | .53/.50 Amp |
| Frequency | 50/60 Hz |
| Max Temperature | 131 degrees F |
| Min Temperature | 14 degrees F |
| Number of Phases | 1 Phase |
| Size | 9.84x9.84x4.72 in |
| Standard | CE,CSA (fan Motor Only),IP54 Standard,IP55 Optional,Type 12,UL/cUL Recognized |
| Type | SF10 162 CFM (275 m3/hr.) Side-Mount Filter Fan |
| Voltage | 115 Volt |
Hoffman - SF1016513 - Dimensions
| Depth | 4.72 Inch |
|---|---|
| Height | 9.84 Inch |
| Width | 9.84 in |
Hoffman - SF1016513 - General Specifications
| Brand | nVent Hoffman |
|---|---|
| Sub Brand | Hoffman |
| 12-Digit UPC | 783510201364 |
| Finish | Black |
| GTiN | 00783510201364 |
| Product UPC | 78351020136 |
| Weight | 4.19 lb |
