Brand: Hoffman | SKU: 646669

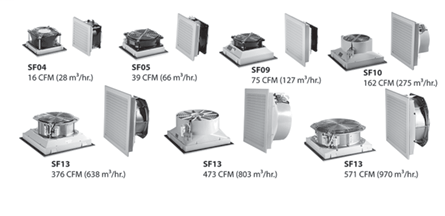

Hoffman SF1026514 | 10" Filter Fan, IP55, 230V, RAL 7035

Name: Hoffman SF1026514 | 10" Filter Fan, IP55, 230V, RAL 7035
Brand: Anixter
SKU: 646669
Price: 324.91 USD
Availability: InStock

$324.91

Shipping calculated at checkout.

Description

IP55 10" Filter Fan 230V 7035, Bulletin MCLF (Filter Fans), Size/Dims: 9.84x9.84x4.72

Reverse airflow option on SF13 models available to push/pull air through higher static pressure
Standard foam-in-place gasket
Terminal wire connections
Click-fit design quickly installs into enclosure wall; no tools or screws required
Optional thermostat available to save energy and extend service life
Simple snap-open grille for easy filter replacement
Enclosure side wall mounting
Similar cut-out sizes as other filter fan manufacturers
Applications
Wind energy systems
Industrial automation
Food and beverage process controls
Automotive assembly
Package handling equipment
Finish
RAL 7035 light-gray, UV-resistant plastic standard
RAL 9011 black, UV-resistant plastic optional
Accessories
Thermostat
Replacement filters
Rain shroud
Specifications
Service life hours from 40000 to 70000 hours
Size rage from 4 in. (102 mm) to 13 in. (325 mm)
Free air flow from 16 CFM (28 m3/hr.) to 571 CFM (920 m3/hr.)
Operating temperature range fo -4 F/-20 C to 149 F/65 C

Amperage	0.25 Amp
Applications	Industrial
Current	.30/.25 Amp
Frequency	50/60 Hz
Max Temperature	131 degrees F
Min Temperature	14 degrees F
Number of Phases	1 Phase
Size	9.84x9.84x4.72 in
Standard	CE,CSA (fan Motor Only),IP54 Standard,IP55 Optional,Type 12,UL/cUL Recognized
Type	SF10 162 CFM (275 m3/hr.) Side-Mount Filter Fan
Voltage	230 Volt
