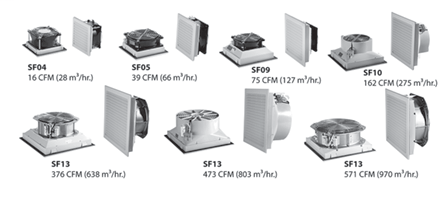

Hoffman SF1316533 | 13" Filter Fan, IP55, 230V, RAL 9011
Regular price
$599.25
Unit price
Brand: Hoffman
|
SKU:
646689
Regular price
$599.25
Unit price
Description
Description
Hoffman SF1316533 | 13" Filter Fan, IP55, 230V, RAL 9011
Click fit design quickly installs into enclosure wall; no tools or screws required. Simple snap-open grille for easy filter replacement. Enclosure side wall mounting. Reverse airflow option on SF13 models available to push/pull air through higher static pressure. Standard foam-in-place gasket. Similar cut-out sizes as other filter fan manufacturers. Terminal wire connections. Optional thermostat available to save energy and extend service life.
Hoffman - SF1316533 - Features
- Similar cut-out sizes as other filter fan manufacturers
- Click-fit design quickly installs into enclosure wall; no tools or screws required
- Terminal wire connections
- Optional thermostat available to save energy and extend service life
- Standard foam-in-place gasket
- Reverse airflow option on SF13 models available to push/pull air through higher static pressure
- Enclosure side wall mounting
- Simple snap-open grille for easy filter replacement
- Applications
- Food and beverage process controls
- Automotive assembly
- Wind energy systems
- Industrial automation
- Package handling equipment
- Finish
- RAL 7035 light-gray, UV-resistant plastic standard
- RAL 9011 black, UV-resistant plastic optional
- Accessories
- Thermostat
- Replacement filters
- Rain shroud
- Specifications
- Size rage from 4 in. (102 mm) to 13 in. (325 mm)
- Operating temperature range fo -4 F/-20 C to 149 F/65 C
- Service life hours from 40000 to 70000 hours
- Free air flow from 16 CFM (28 m3/hr.) to 571 CFM (920 m3/hr.)
Specifications
Specifications
Hoffman - SF1316533 - Product Categories
- Data & Communication
- Racks, Enclosures & Cable Management
- Enclosure & Cabinet Accessories
Hoffman - SF1316533 - Technical Information
| Amperage | 1.02/1.47 Amp |
|---|---|
| Applications | Industrial |
| Current | 1.02 Amp |
| Frequency | 50/60 Hz |
| Max Temperature | 140 degrees F |
| Min Temperature | 5 degrees F |
| Number of Phases | 1 Phase |
| Size | 12.72x12.72x5.51 in |
| Standard | CE,CSA (fan Motor Only),IP54 Standard,IP55 Optional,Type 12,UL/cUL Recognized |
| Type | SF13 571 CFM (970 m3/hr.) Side-Mount Filter Fan |
| Voltage | 115 Volt |
Hoffman - SF1316533 - Dimensions
| Depth | 5.51 Inch |
|---|---|
| Height | 12.72 Inch |
| Width | 12.72 in |
Hoffman - SF1316533 - General Specifications
| Brand | nVent Hoffman |
|---|---|
| Sub Brand | Hoffman |
| 12-Digit UPC | 783510201722 |
| Finish | Black |
| GTiN | 00783510201722 |
| Product UPC | 78351020172 |
| Weight | 10.14 lb |
