Hoffman SF1326414 | IP54 13" 376 CFM Filter Fan, 230V, RAL 7035
Regular price
$340.61
Unit price
Description
Description
Hoffman SF1326414 | IP54 13" 376 CFM Filter Fan, 230V, RAL 7035
Cooling fan, side mount-standard and reverse, RAL 7035 light grey, 375 CFM (638 m /hr.), UV-resistant plastic standard. Click-fit design quickly installs into enclosure wall; no tools or screws required. Simple snap-open grille for easy filter replacement. Enclosure side wall mounting. Standard foam-in-place gasket. Optional thermostat available to save energy and extend service life.
Hoffman - SF1326414 - Features
- Optional thermostat available to save energy and extend service life
- Click-fit design quickly installs into enclosure wall; no tools or screws required
- Simple snap-open grille for easy filter replacement
- Terminal wire connections
- Reverse airflow option on SF13 models available to push/pull air through higher static pressure
- Enclosure side wall mounting
- Standard foam-in-place gasket
- Similar cut-out sizes as other filter fan manufacturers
- Applications
- Food and beverage process controls
- Industrial automation
- Wind energy systems
- Automotive assembly
- Package handling equipment
- Finish
- RAL 9011 black, UV-resistant plastic optional
- RAL 7035 light-gray, UV-resistant plastic standard
- Accessories
- Replacement filters
- Thermostat
- Rain shroud
- Specifications
- Operating temperature range fo -4 F/-20 C to 149 F/65 C

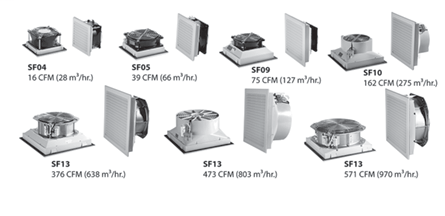

- Free air flow from 16 CFM (28 m3/hr.) to 571 CFM (920 m3/hr.)
- Size rage from 4 in. (102 mm) to 13 in. (325 mm)
- Service life hours from 40000 to 70000 hours
Specifications
Specifications
Hoffman - SF1326414 - Product Categories
- Enclosures
- Enclosures
- Thermal Management
- Filter Fans
Hoffman - SF1326414 - Technical Information
| Amperage | 0.35 Amp |
|---|---|
| Applications | Industrial |
| Current | .29/.35 Amp |
| Frequency | 50/60 Hz |
| Max Temperature | 131 degrees F |
| Min Temperature | 14 degrees F |
| Number of Phases | 1 Phase |
| Size | 12.72x12.72x5.83 in |
| Standard | CE,CSA (fan Motor Only),IP54 Standard,IP55 Optional,Type 12,UL/cUL Recognized |
| Type | SF13 376 CFM (638 M3/hr.) Side-Mount Filter Fan |
| Voltage | 230 Volt |
Hoffman - SF1326414 - Dimensions
| Depth | 5.83 Inch |
|---|---|
| Height | 12.72 Inch |
| Width | 12.72 in |
Hoffman - SF1326414 - General Specifications
| Brand | nVent Hoffman |
|---|---|
| Sub Brand | Hoffman |
| 12-Digit UPC | 783510200473 |
| Finish | Gray |
| GTiN | 00783510200473 |
| Product UPC | 78351020047 |
| Weight | 7.5 lb |
