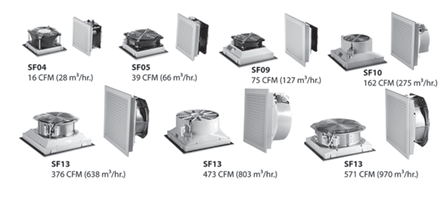

Hoffman SF1326523 | IP55 13" 435 CFM Filter Fan, 230V, RAL 7035
Regular price
$466.96
Unit price
Brand: Hoffman
|
SKU:
646713
Regular price
$466.96
Unit price
Description
Description
Hoffman SF1326523 | IP55 13" 435 CFM Filter Fan, 230V, RAL 7035
IP55 13" 435 Filter Fan 230V 9011, Bulletin MCLF (Filter Fans), Size/Dims: 12.72x12.72x6.38
Hoffman - SF1326523 - Features
- Similar cut-out sizes as other filter fan manufacturers
- Standard foam-in-place gasket
- Optional thermostat available to save energy and extend service life
- Reverse airflow option on SF13 models available to push/pull air through higher static pressure
- Terminal wire connections
- Simple snap-open grille for easy filter replacement
- Click-fit design quickly installs into enclosure wall; no tools or screws required
- Enclosure side wall mounting
- Applications
- Automotive assembly
- Food and beverage process controls
- Package handling equipment
- Industrial automation
- Wind energy systems
- Finish
- RAL 7035 light-gray, UV-resistant plastic standard
- RAL 9011 black, UV-resistant plastic optional
- Accessories
- Rain shroud
- Thermostat
- Replacement filters
- Specifications
- Operating temperature range fo -4 F/-20 C to 149 F/65 C
- Service life hours from 40000 to 70000 hours
- Size rage from 4 in. (102 mm) to 13 in. (325 mm)
- Free air flow from 16 CFM (28 m3/hr.) to 571 CFM (920 m3/hr.)
Specifications
Specifications
Hoffman - SF1326523 - Product Categories
- Heat, Ventilation & Builder Products
- Exhaust & Ventilation
- Bathroom Fan
- Fan Only
Hoffman - SF1326523 - Technical Information
| Amperage | 0.74 Amp |
|---|---|
| Applications | Industrial |
| Current | .51/.74 Amp |
| Frequency | 50/60 Hz |
| Max Temperature | 131 degrees F |
| Min Temperature | 14 degrees F |
| Motor Type | AC Motor |
| Number of Phases | 1 Phase |
| Size | 12.72x12.72x6.38 in |
| Standard | CE,CSA (fan Motor Only),IP54 Standard,IP55 Optional,Type 12,UL/cUL Recognized |
| Type | SF13 473 CFM (803 m3/hr.) Side-Mount Filter Fan |
| Voltage | 230 Volt |
Hoffman - SF1326523 - Dimensions
| Depth | 6.38 Inch |
|---|---|
| Height | 12.72 Inch |
| Width | 12.72 in |
Hoffman - SF1326523 - General Specifications
| Brand | nVent Hoffman |
|---|---|
| Sub Brand | Hoffman |
| 12-Digit UPC | 783510201562 |
| Finish | Black |
| GTiN | 00783510201562 |
| Product UPC | 78351020156 |
| Weight | 7.72 lb |
