Brand: Hoffman
|
SKU:
646721

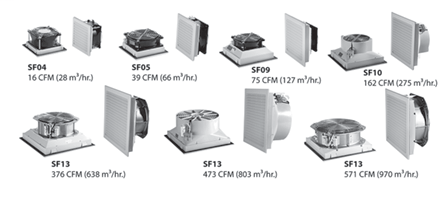

Hoffman SF1340434R | IP54 13" Reverse 571 CFM Filter Fan, 400/460V, RAL 7035
Regular price
$653.73
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman SF1340434R | IP54 13" Reverse 571 CFM Filter Fan, 400/...
Regular price
$653.73
Unit price
Description
Description
Hoffman SF1340434R | IP54 13" Reverse 571 CFM Filter Fan, 400/460V, RAL 7035
IP54 13" Rvrs 571 Fltr Fan 400/460V 7035, Bulletin MCLF (Filter Fans), Size/Dims: 12.72x12.72x5.51
Hoffman - SF1340434R - Features
- Reverse airflow option on SF13 models available to push/pull air through higher static pressure
- Standard foam-in-place gasket
- Simple snap-open grille for easy filter replacement
- Click-fit design quickly installs into enclosure wall; no tools or screws required
- Optional thermostat available to save energy and extend service life
- Similar cut-out sizes as other filter fan manufacturers
- Terminal wire connections
- Enclosure side wall mounting
- Applications
- Package handling equipment
- Wind energy systems
- Automotive assembly
- Industrial automation
- Food and beverage process controls
- Finish
- RAL 9011 black, UV-resistant plastic optional
- RAL 7035 light-gray, UV-resistant plastic standard
- Accessories
- Rain shroud
- Thermostat
- Replacement filters
- Specifications
- Size rage from 4 in. (102 mm) to 13 in. (325 mm)
- Free air flow from 16 CFM (28 m3/hr.) to 571 CFM (920 m3/hr.)
- Service life hours from 40000 to 70000 hours
- Operating temperature range fo -4 F/-20 C to 149 F/65 C
Specifications
Specifications
Hoffman - SF1340434R - Product Categories
- Heat, Ventilation & Builder Products
- Exhaust & Ventilation
- Bathroom Fan
- Fan Only
Hoffman - SF1340434R - Technical Information
| Amperage | 0.27 Amp |
|---|---|
| Applications | Industrial |
| Current | .25/.27 Amp |
| Frequency | 50/60 Hz |
| Max Temperature | 140 degrees F |
| Min Temperature | 5 degrees F |
| Number of Phases | 3 Phase |
| Size | 12.72x12.72x5.51 in |
| Standard | CE,CSA (fan Motor Only),IP54 Standard,IP55 Optional,Type 12,UL/cUL Recognized |
| Type | SF13 571 CFM (970 m3/hr.) Side-Mount Filter Fan |
| Voltage | 400/460 Volt |
Hoffman - SF1340434R - Dimensions
| Depth | 5.51 Inch |
|---|---|
| Height | 12.72 Inch |
| Width | 12.72 in |
Hoffman - SF1340434R - General Specifications
| Brand | nVent Hoffman |
|---|---|
| Sub Brand | Hoffman |
| 12-Digit UPC | 783510202231 |
| Finish | Gray |
| GTiN | 00783510202231 |
| Product UPC | 78351020223 |
| Weight | 10.14 lb |
