Hoffman SFBBSS | Syspend Sanitary HMI Fixed Base Bracket, SS Type 304
Regular price
$1,122.91
Unit price
Brand: Hoffman
|
SKU:
654761
Regular price
$1,122.91
Unit price
Description
Description

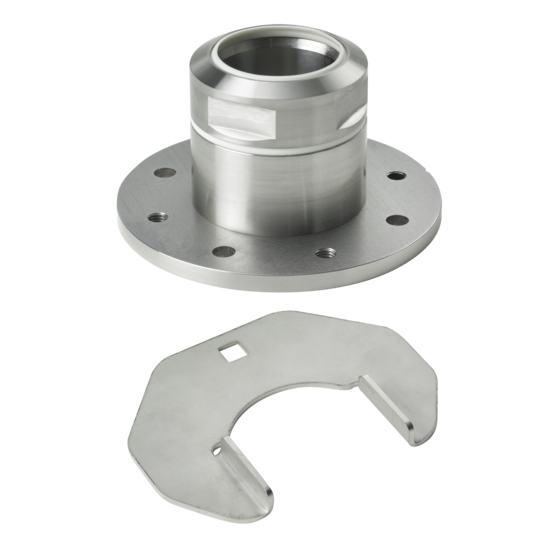

Syspend Sanitary HMI Fixed Base Bracket provides a means of attaching a tube to a wall, floor or machine. Syspend-Lok attachment method prevents tubes from turning and pulling out of fittings and provides a water-tight connection.
Main Features
- Type 304 polished stainless steel
- Includes 4 set screws that provide means of leveling the entire suspension system
- Surface mounting fasteners are not provided
- Optional Base Bracket Cover available to cover all exposed mounting hardware
- Syspend-Lok Wrench Head for attaching base bracket to tubes is included
- Strap wrench or spanner wrench that opens to 80 mm or greater can also be used
Specifications
Specifications
Specifications
| Height | 3.53 in / 89.662 mm |
|---|---|
| Width | 6.5 in / 165.1 mm |
| Depth | 6.5 in / 165.1 mm |
| Protection Rating | IP54; IP66; IP69K |
| Material | Stainless Steel 304 |
| Color | Unpainted |
| Finish | Polished |
| Thickness | 0.45 in / 11.4 mm |
| Weight | 7.7 lb |
| BULLETIN NUMBER | VM9 |
