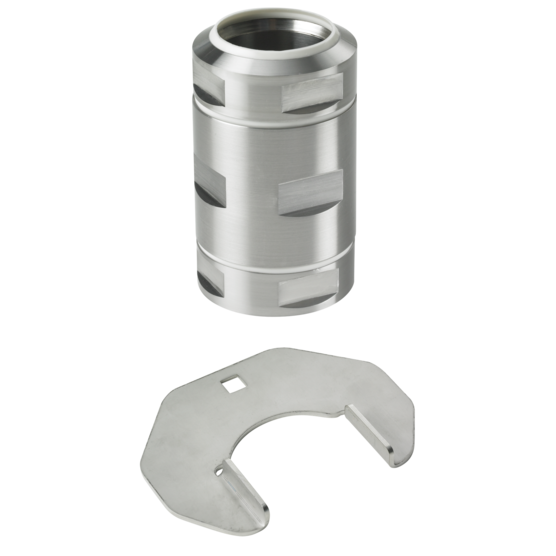

Hoffman SFCSS | Syspend Sanitary HMI Fixed Coupling, SS Type 304
Regular price
$1,419.91
Unit price
Brand: Hoffman
|
SKU:
654762
Regular price
$1,419.91
Unit price
Description
Description
Syspend Sanitary HMI Fixed Coupling attaches a tube to the enclosure when enclosure rotation is not needed or provides secure means of joining two tubes together. Syspend-Lok attachment method prevents tubes from turning and pulling out of fittings and provides a water-tight connection.
Main Features
- Type 304 polished stainless steel
- Syspend-Lok Wrench Head for attaching coupling to tubes is included
- Strap wrench or spanner wrench that opens to 80 mm or greater can also be used
Specifications
Specifications
Specifications
| Height | 6.09 in / 154.686 mm |
|---|---|
| Width | 3.46 in / 87.884 mm |
| Depth | 3.46 in / 87.884 mm |
| Protection Rating | IP54; IP66; IP69K |
| Material | Stainless Steel 304 |
| Color | Unpainted |
| Finish | Polished |
| Thickness | 0.45 in / 11.4 mm |
| Weight | 7 lb |
| BULLETIN NUMBER | VM9 |
